Hot/Cold Recycling Retrofitting

Introduction

Hot/Cold Recycling Retrofitting

D&G Machinery advocates the good use of recycling resources. The RS series can provide double-drum recycling solutions for all brands. The proportion of recycled materials can reach 50% or above, which greatly improves the economic benefits of the plant owners.

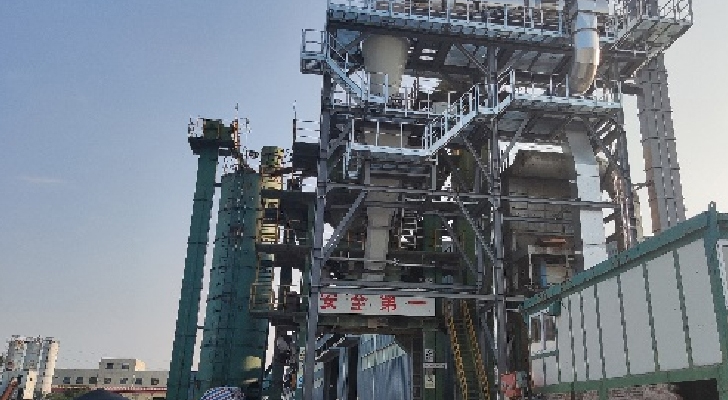

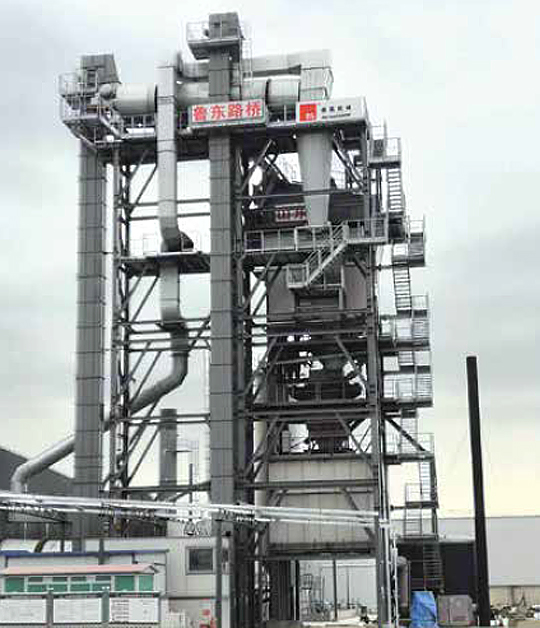

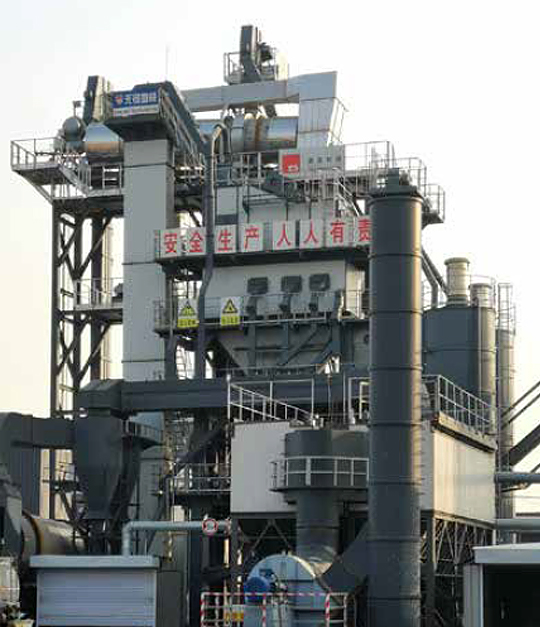

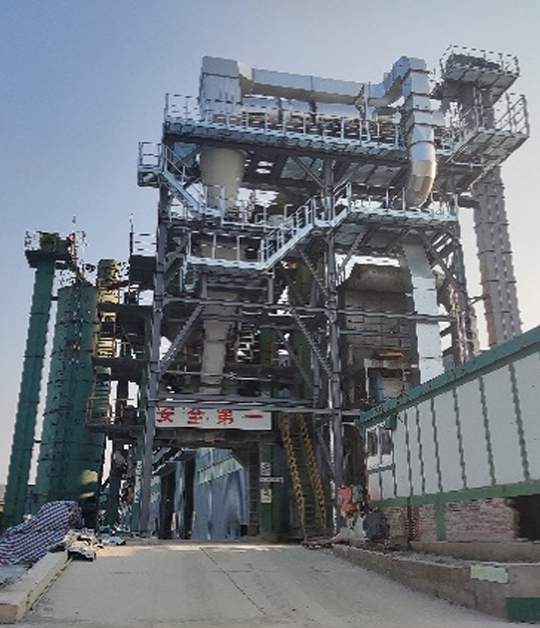

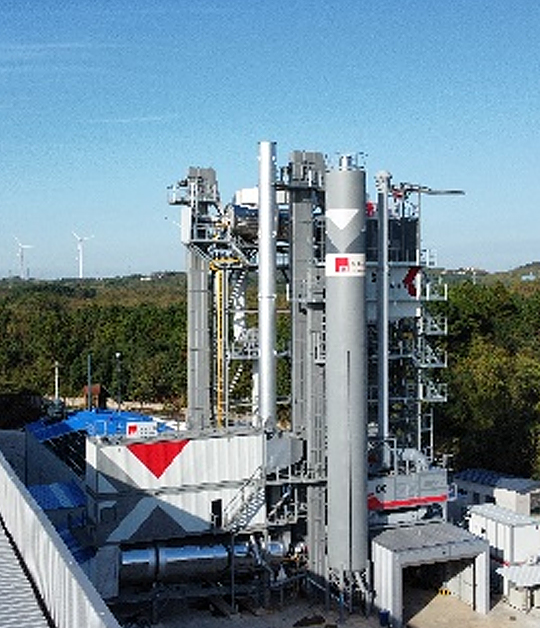

Ammann5000+ D&G RS220

NIKKO3000+D&G RS190

D&G4000D+ D&G RS220

XUETAO3000+D&GRS190

Advantage

Why RAP?

Save new aggregate and bitumen, cut cost by 17.5%-50%, bring more economic benefits

Various Configuration Options

Customers are given a wide range of recycling configuration choices, where up to 100% RAP can be added.

The New Generation Self-Cleaning Dryer Drum

It greatly reduces the adhesion of RAP, the discharge temperature can reach 160°C, and the RAP exhaust gas temperature drops to 160-170°C.

Parameter

No.	Component	RS180	RS190	RS190+	RS220	RS250	RS250+	RS280
1	Rated Production Capacity	60 t/h	80-100 t/h	100-120 t/h	120-160 t/h	180-200 t/h	200-220 t/h	240-260 t/h
2	Cold Feeder Bin	8 m³x2	12 m³x2	12 m³x2	12 m³x2	12 m³x2	12 m³x2	12 m³x2
3	Belt Conveyor	210 t/h	210 t/h	210 t/h	310 t/h	310 t/h	310 t/h	400 t/h
4	Elevator	70 t/h	120 t/h	120 t/h	190 t/h	200 t/h	200 t/h	320 t/h
5	RAP Dryer Drum-Diameter	1800 mm	1900 mm	1900 mm	2200 mm	2500 mm	2500 mm	2800 mm
5	-Length	9 m	11 m	11 m	11 m	11 m	14 m	14 m
6	RAP Bin	3 m³	6 m³	6 m³	9 m³	9 m³	9 m³	15 m³
7	RAP Scale	800 KG	2000 KG	2000 KG	3000 KG	3000 KG	3000 KG	4300 KG
