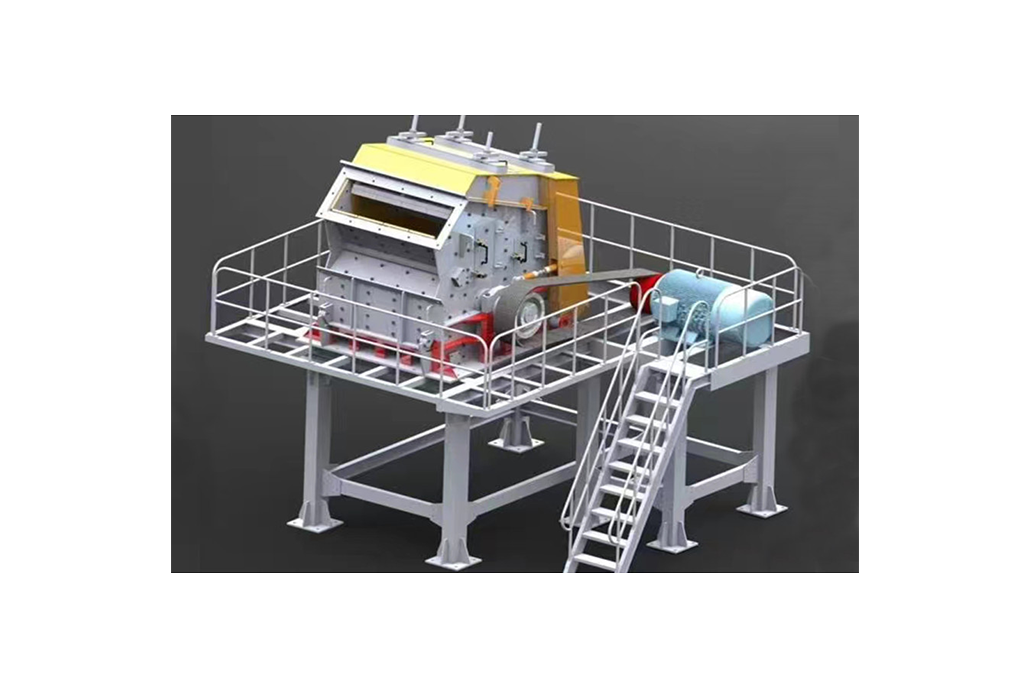

The European version counterattack crusher is the high-performance crusher introduced and absorbed by our company with German technology. It is an innovation in the field of crushing! The maximum feed particle size can reach 1000mm, with a large crushing ratio, completely solving the objective defects of small feed and low production capacity of current domestic impact crushers.
Model | Rotor Size(φ mm) | Feed Opening Size (mm) | Max.Feed Side Length(mm) | Production Capacity(t/h) | Power(kW) | Weight(t) | Overall Size（mm） |
PF-1214* | φ1250x1400 | 400x1430 | 300 | 90-180 | 132-160 | 20.8 | 2850x2400x2900 |
PF-1315* | φ1320x1500 | 860x1520 | 350 | 120-250 | 180-220 | 24.8 | 3100x2800x3160 |
PF-1318* | φ1320x1500 | 880x2000 | 350 | 150-260 | 220-260 | 26.8 | 3100x3210x2613 |
PF-1320* | φ1320x2000 | 900x2030 | 500 | 160-350 | 260-300 | 34 | 3320x3218x2613 |
PF-1520* | φ1512x2000 | 1315x2040 | 700 | 350-450 | 400-500 | 44 | 4138x3422x3649 |
PF-1620* | φ1612x2000 | 1315x2040 | 700 | 400-600 | 500 | 47 | 4236x3572x3735 |
PF-1820* | φ1800x2000 | 1620x2040 | 700 | 550-800 | 630-710 | 66 | 4471x3250x4008 |
