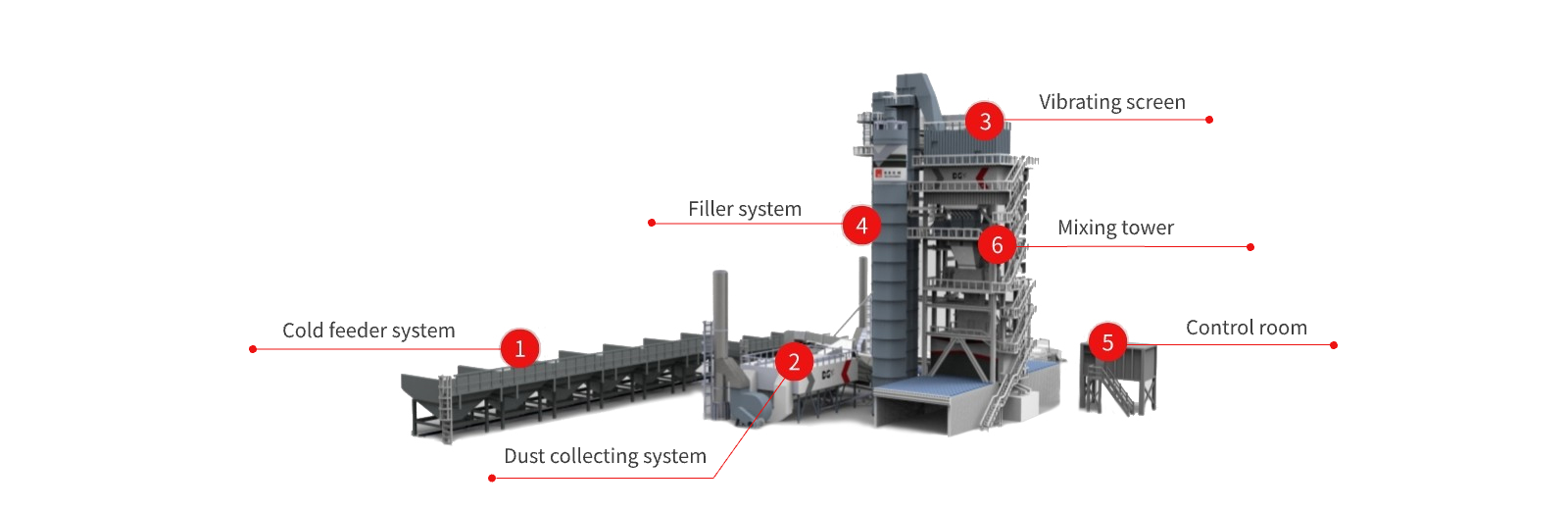

DGX asphalt mixing plant adopts the idea of cross model on planning and design, which can realize the conversion of different equipment styles and functions and meet the requirements of different production conditions with each functional module is combined according to different modes. For the need of production, which can be assembled according to its type.
For assure the stable and service life of asphalt plant, D&G selected the most famous brand for key components supplier. There are ROSSI MotorIduttori, SIEMENS, SKF, WAMGROUP, ABS and others prestigious supplier included in our supply chain. We always keep pace with the international advanced technology.
Because of the sufficient capacity of drum\vibrator\mixer, the plant can reach normal productivity easily and even can get more productivity if have the proper raw material supply.

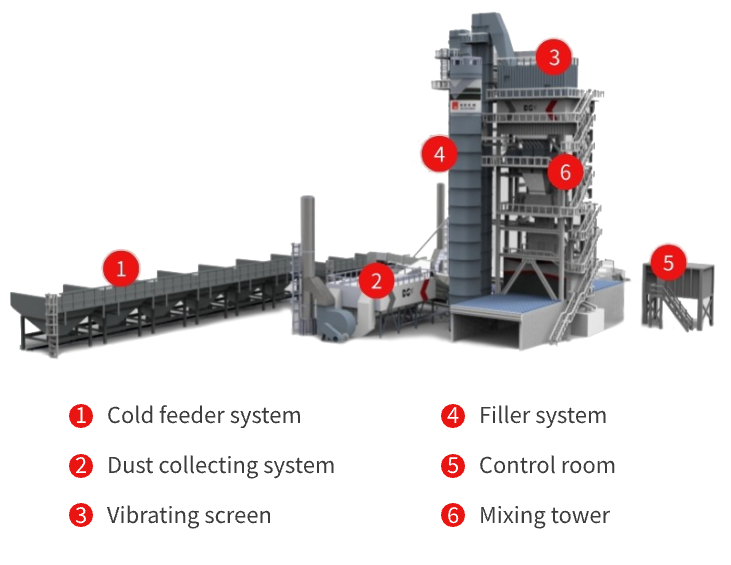

Mixing Tower:
Drying System:
▶ The drum flights are applied in HARDOX high strength wear-resistance steel to prove long service time.
▶ Employing thermal insulating rock wool material that can keep the energy inside, reducing heat loss.
▶ Multiple-function ABS burner, kinds fuel (gas, oil, diesel, coal) can be chose as required.
Customers can get professional consultation from initial project to model selection phrase from D&G machinery. We provide flexible customized options which can meet various needs of customer.
D&G self-developed know-how "AIntelligent bitumen measurement system" ensure the pre-set recipe can be implement with minimum deviation value. In the meantime, the waste of bitumen and other materials are eliminated.
The system configured with Siemens PLC which have 2 cabling configuration options: PROFI-bus and distributed control system. Both mode can assure the signal feedback in Real time without lag off.
MODEL-DGX Series | DGX1500 | DGX2000 | DGX3000 | DGX4000 | DGX4500 | DGX5000 |
Rated Production Capacity | 120t/h | 180 t/h | 240 t/h | 320 t/h | 360 t/h | 400 t/h |
Cold Feeder Bin | 5 x 10m3 | 5 x 10m3 | 5 x 18m3 | 6 x 18m3 | 6 x 18m3 | 6 x 18m3 |
Dryer Drum Size | Ø 1.9m x 9m | Ø 2.2m x 9m | Ø 2.5m x 9m | Ø 2.8m x 12m | Ø 2.8m x 12m | Ø 3.0m x 12m |
Dust Collector | Primary gravity + Bag filter | |||||
Screen | 4 | 5 | 5 or 6 | 6 | 6 | 6 |
Hot Bin Volume | 14m³ | 21m³ | 45m³ | 75m³ | 75m³ | 80m³ |
Mixer Capacity | 2000kg | 2000kg | 3300kg | 4200kg | 5500kg | 5500kg |
Control System | DG Leap + PLC | |||||
Emission Rank | ● Dust Density ≤ 20 mg/Nm³ | |||||
● Cabin Noise ≤ 70 dB | ||||||
● Ringelmann Blackness Class Ⅰ | ||||||
Note | ● Some specifications / options might not be available in some countries due to local regulations. | |||||

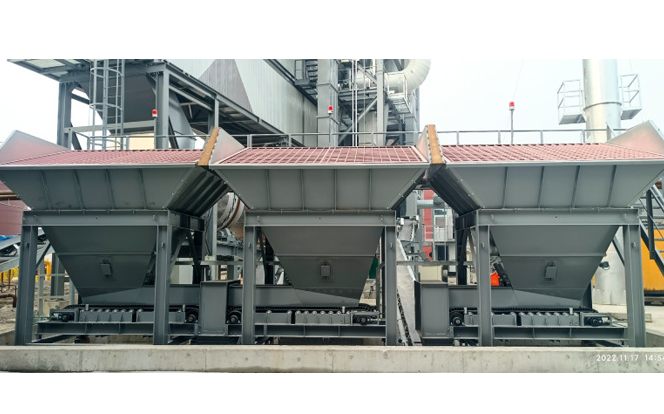

1) Frequency inverter belt conveyor.
2) Each compartment is equipped with an aggregate shortage alarming device.
3) Belt driving system consisted of Siemens motor+ Bonfiglioli reducer+ SKF bearing.

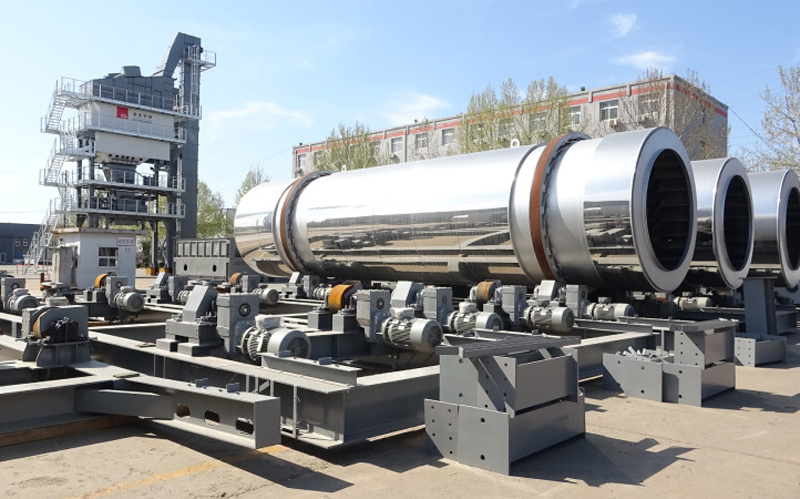

1) The drum flights are applied in HARDOX high strength wear-resistance steel to prove long service time.
2) Employing thermal insulating rock wool material that can keep the energy inside, reducing heat loss.
3) Multiple-function ABS burner, kinds fuel (gas, oil, diesel, coal) can be chosen as required.

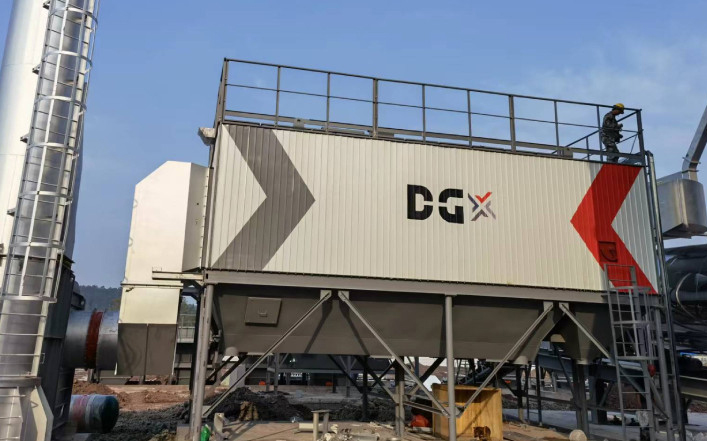

1) Two stage dust filtration system: primary gravity+ bag filter.
2) Frequency control exhaust fan.

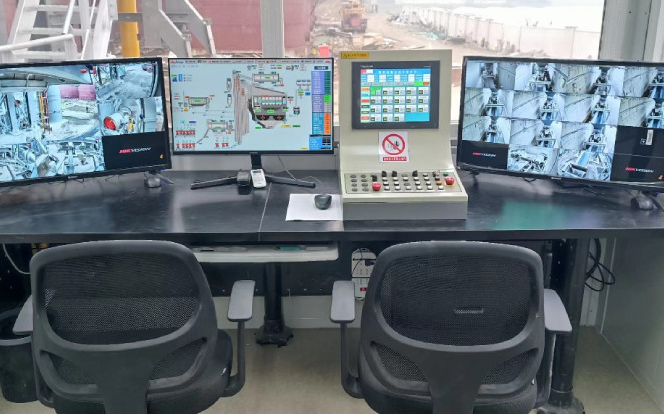

1) "DG LEAP" Automatic and manual control can be switched.
2) System configured with Siemens PLC.

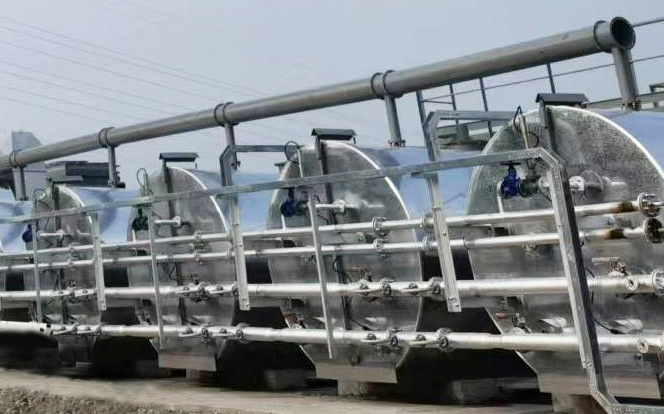

1) Thick thermal insulation layer on bitumen tanks and pipes, minimal heat loss.
2) Liquid level indicators and thermometers are installed on bitumen tanks; easy for observation and operation.
3) Circulating pump to control the bitumen flow.
1) Double vibration motor.
2) Sufficient vibrating force to prove high sieving efficiency.
