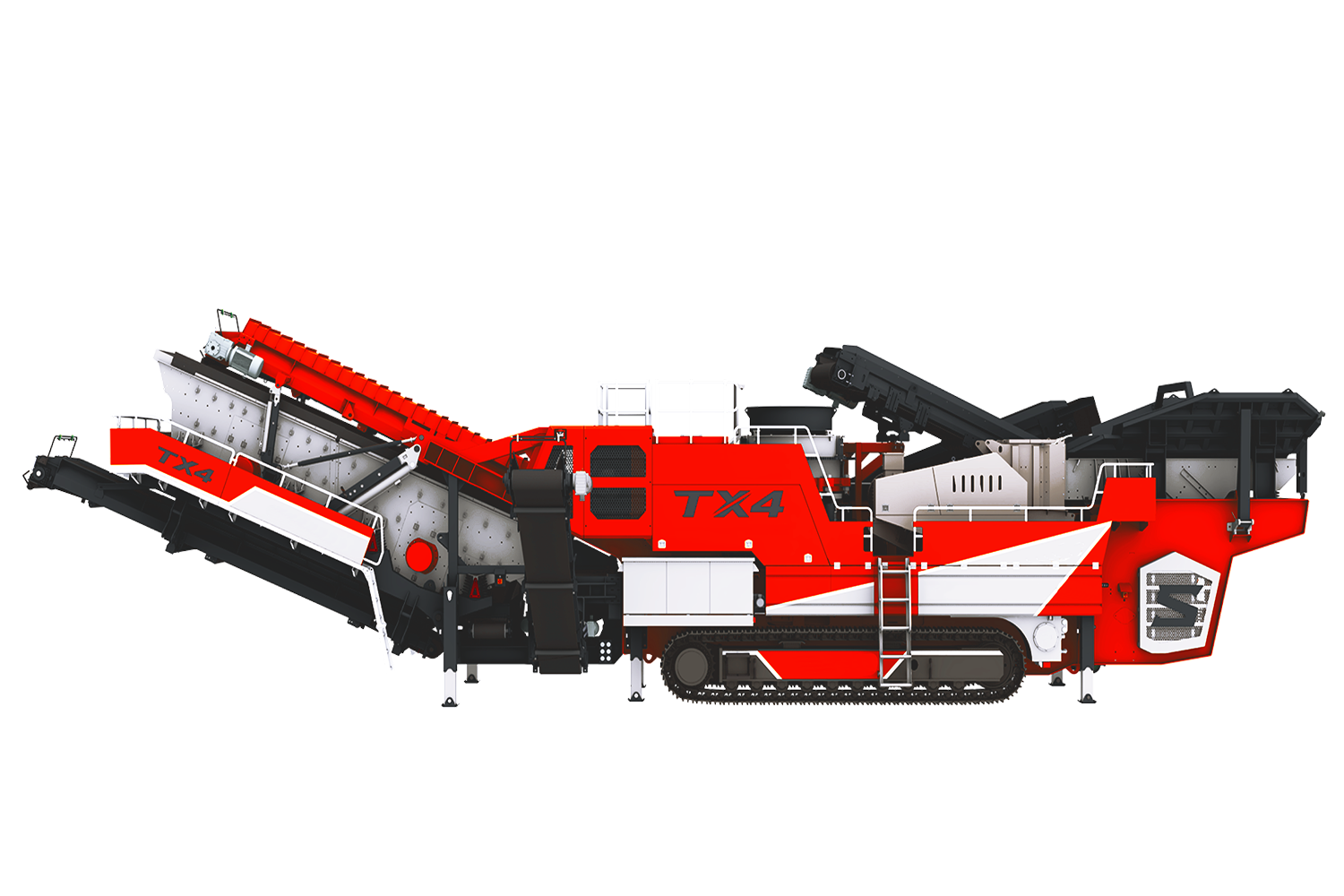

TX4 is a master in the field of crawler mobile hard rock crushing and screening. It creatively integrates four units: vibrating feeder, jaw crusher, multi cylinder hydraulic cone crusher and three-layer two-stage screen. Through exquisite structural design, TX4 achieves the screening effect of split hard rock production line, opens a new journey of mobile hard rock crushing, making breakthrough contribution to the industry.
|
Parts/ Configuration |
Model |
|
TX4 |
|
|
Feeding height（mm） |
4170 |
|
Feeder width×length（mm） |
1100x3960 |
|
Power（kW） |
2x3.7kW |
|
Return screen(double segment) |
|
|
Mesh layer |
3 |
|
Vibrating screen width×length（mm） |
2000x2500/2000x3500 |
|
Power（kW） |
4x6kW |
|
Conveyors |
|
|
Main conveyor width×length（mm） |
1200x15380 |
|
Finished product side conveyor width×length（mm） |
500x6600 |
|
Under screen conveyor width×length（mm） |
1000x7000 |
|
Return conveyor 1 width×length（mm） |
800x9550 |
|
Return conveyor 2 width×length（mm） |
800x6260 |
|
Parameters |
|
|
Total power（kW） |
490 |
|
Processing capacity（t/h） |
200-400 |
|
Speed（km/h） |
0.6-1 |
|
Total Weight（t） |
116 |
|
Transportation size length x width x height (mm） |
21900x3964x3944 |
|
The data in this table is for reference only. Specifics are subject to the actual product configuration. |
|
