Heavy Duty Hammer Crusher – LPCZ

Categories	Flat-type Crushing Plant
Brand	D&G Asphalt Plant Manufacturer
Model	Multiple Models
Type	Flat Type
Origin of Place	China
Color	Customizable
FOB port	TIANJIN
Terms of Payment	L/C, T/T
Update Time	Aug 13,2024

Contact Now

Favorites

Detail Information

Heavy Duty Hammer Crusher D&G Machinery manufacturer China

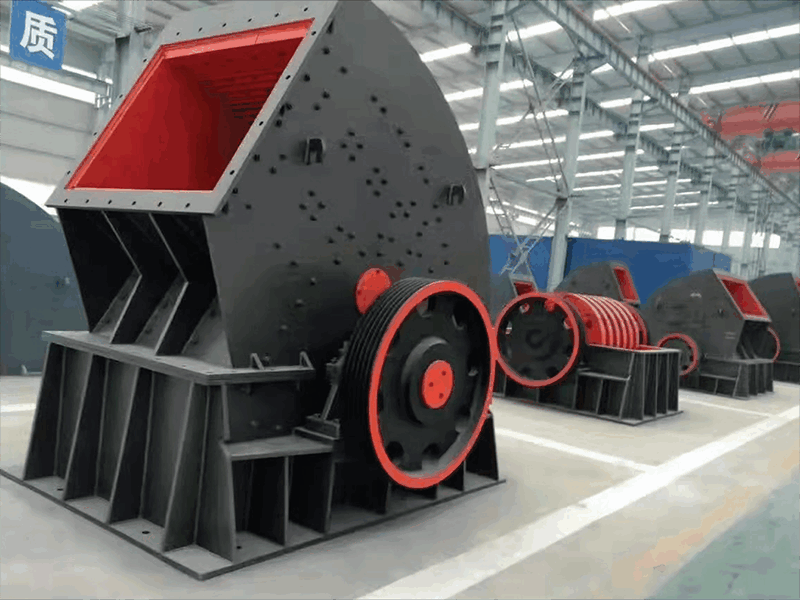

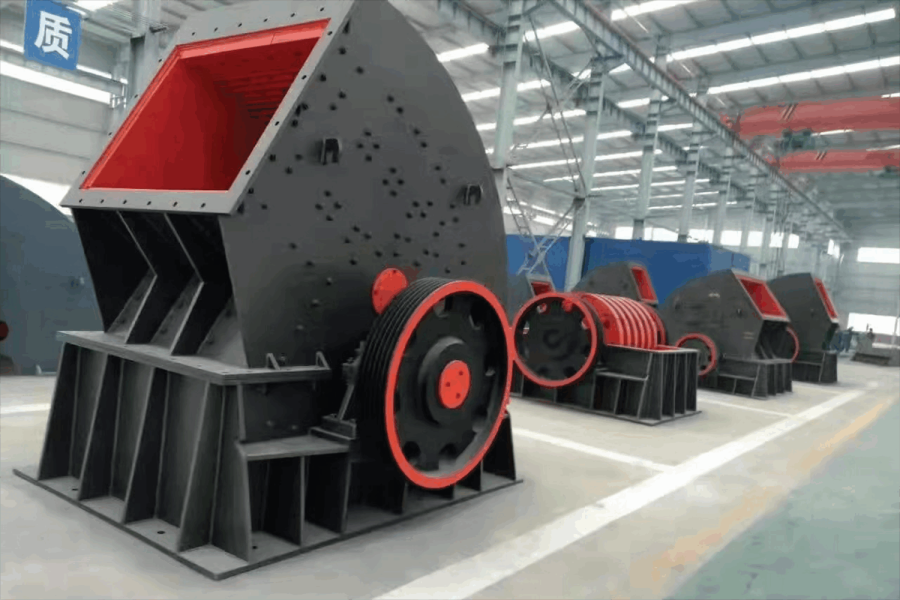

Heavy Duty Hammer Crusher – LPCZ

The heavy-duty hammer crusher features advanced product structure, reliable performance, stable operation, and low energy consumption. The heavy hammer crusher can directly crush materials with a particle size of 600-1600 mm to below 25 mm in one step. It is suitable for crushing various medium-hardness and brittle materials, such as limestone with a compressive strength not exceeding 150 MPa and a calcium content higher than 40%, as well as materials like limestone, coal, shale, gypsum, alum, bricks, and coal gangue.

Contact us to get the product catalogue!

Product Parameters:

Rotor(Diameter x L)	Rotor (Diameter x L)(mm)	Feed Opening Size (W x L) (mm)	Feed Particle Size(mm)	Production Capacity(t/h)	Motor Power(kW)	Overall Size (L x W x H)
KLZ-Z1310	φ1310x1050	890x1075	≤500	150-180	160-4	2950x2250x2495
KLZ-Z1512	φ1500x1160	1200x900	≤600	250-320	(160-4)x2	3260x2624x2750
KLZ-Z1615	φ1650x1452	1500x1200	≤650	420-800	(220-4)x2	3667x2937x3436
KLZ-Z1818	φ1850x1800	1500x1280	≤700	550-800	(250-4)x2	3680x3350x3515
KLZ-Z1620	φ1660x1900	2000x1200	≤800	800-1200	(400-6)x2	3667x3200x3436
KLZ-Z1820	φ1800x1964	2000x1200	≤800	800-1500	(450-4)x2	3700x3270x3515
KLZ-Z2122	φ2130x2280	2240x1510	≤1000	1800-2200	1000-6	4990x4385x4360
KLZ-Z2225	φ2200x2485	2530x1560	≤1200	2000-3000	1250-6	5060x4565x4670
