Screening Plant

Screening Plant
CategoriesMobile Crushing Plant
BrandD&G Asphalt Plant Manufacturer
ModelMultiple Models
TypeModular Type
Origin of PlaceChina
ColorCustomizable
FOB portTIANJIN
Terms of PaymentL/C, T/T
Update TimeNov 14,2024
Detail Information
Screening Plant D&G Machinery manufacturer China

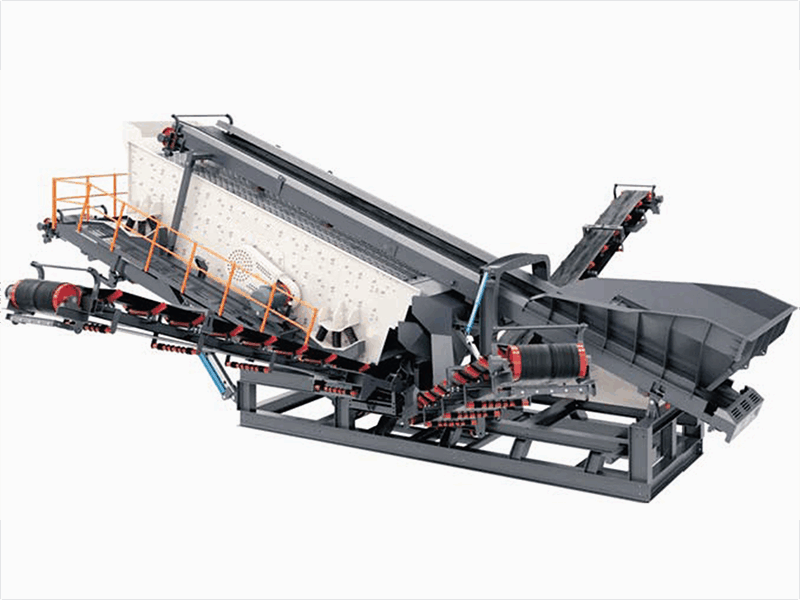

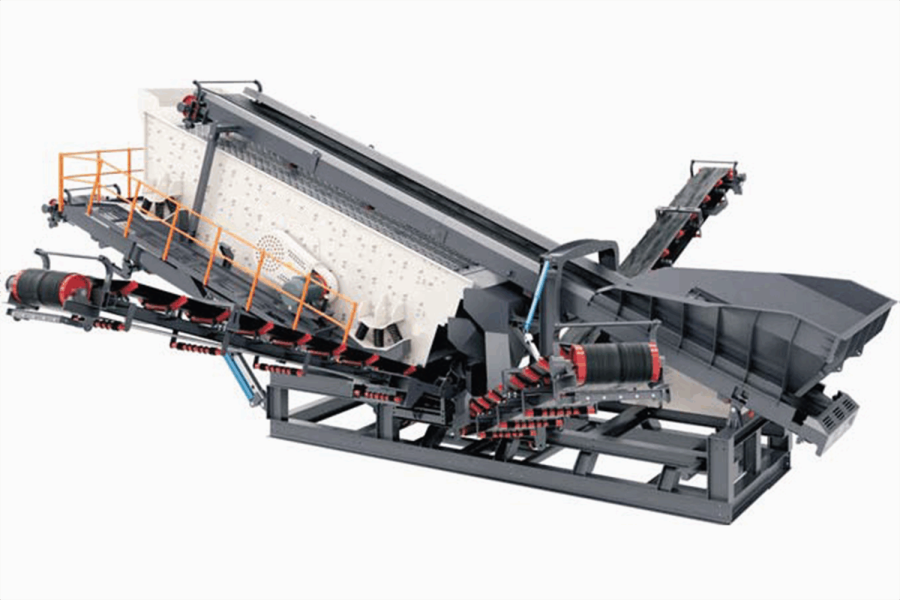

Screening Plant

The screening plant can widely and accurately select the desired final product particle size during the screening process. It is primarily used in conjunction with the coarse crushing module of jaw crushers and the medium to fine crushing module of cone crushers, to screen and classify the crushed products.





Product Feature:
1.Outstanding screening capacity

When the circular vibrating screen is in operation, the screen box experiences strong vibrations, which can reduce the occurrence of material blockage in the screen holes. This enables the vibrating screen to have higher production efficiency and screening efficiency.
2. Main Conveyor

The high-quality integrated conveyor is sturdy, durable, and resistant to deviation.
3. Hopper

Large capacity storage bin, ensuring higher installation flexibility to adapt to various working conditions.
4. Screening Stations

This series of screening stations is with a modular bottom discharge chute, which allows for easy transportation and installation. During the process, a front slide-out chute is incorporated to provide convenient maintenance for the screening machines.

5. Solid Structure

It features large radius transition corners and low-stress zone welding, which provides durability, uniform stress distribution, and a low failure rate. It is designed to have high impact resistance.
Product Parameters:

ITEM
DESCRIPTION
SPECIFICATION
DIMENSION(M)(Length x width x height)
MBP-LF250
Feed Conveyor
B1000X5.5
17 X 3.6 X 4.7
Cone Crusher
LF250
Main Conveyor
B1000X8.7
Return Screen
1542
Conveyor Under The Screen
B1000X6.2
Transfer Conveyor
B650X2
Return Conveyor
B500X9.5
MBP-3YA1860
Feed Conveyor
B1000X11.5
14.8 X 17 X 5.5
Screen
3YA1860
Conveyor Under The Screen
B800X8.5
Large Size Material Conveyor
B650X7
Intermediate Material Conveyor
B650x9.5
Fine Material Conveyor
B650X9.5
MBP-3YA2160
Feed Conveyor
B1200X11.5
15 x 17.1 x 5.7
Screen
3YA2160
Conveyor Under The Screen
B1000X8.5
Transfer Conveyor
B650X7
Return Conveyor
B650X9.5
Feed Conveyor
B650X9.5
