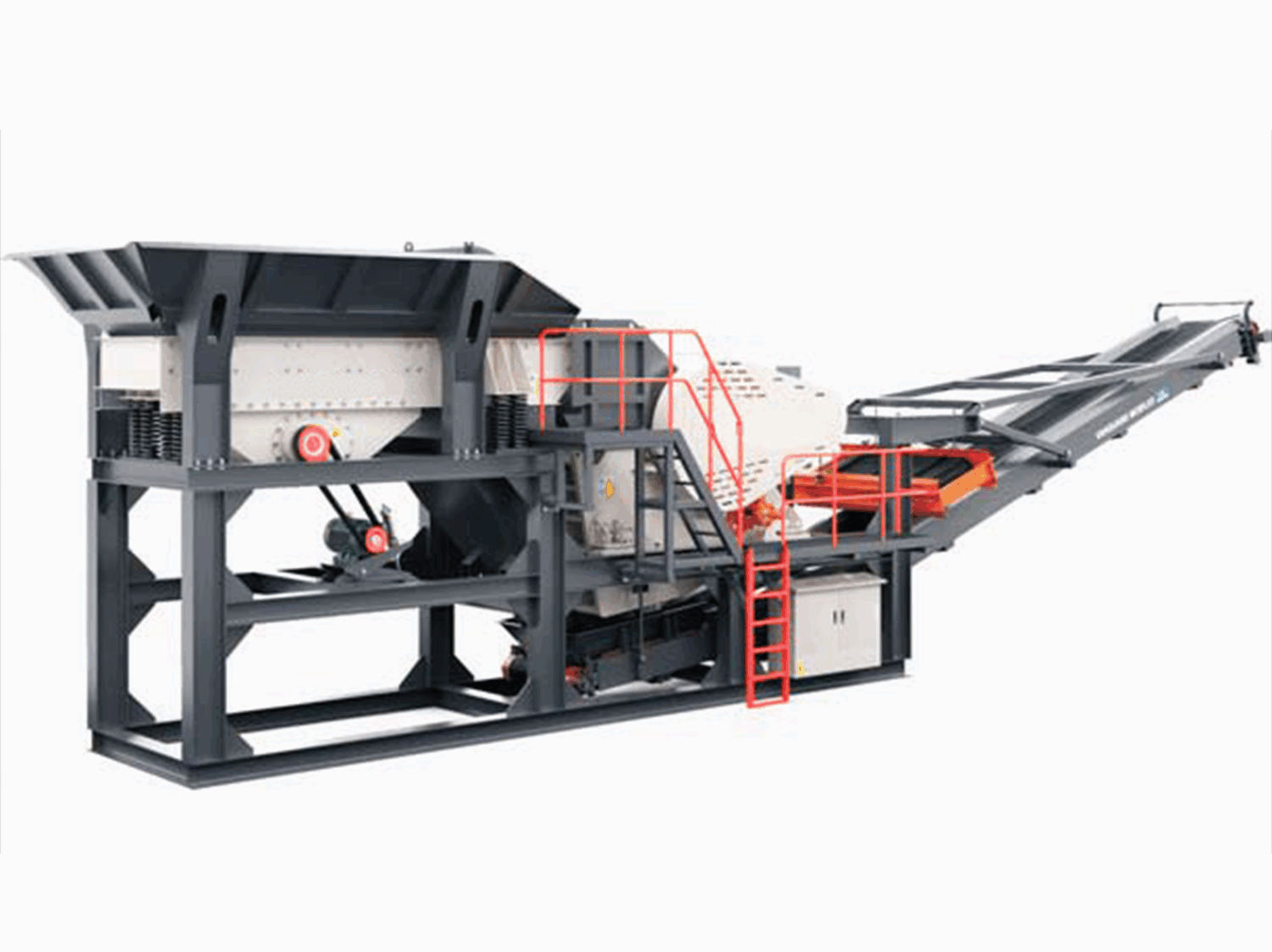

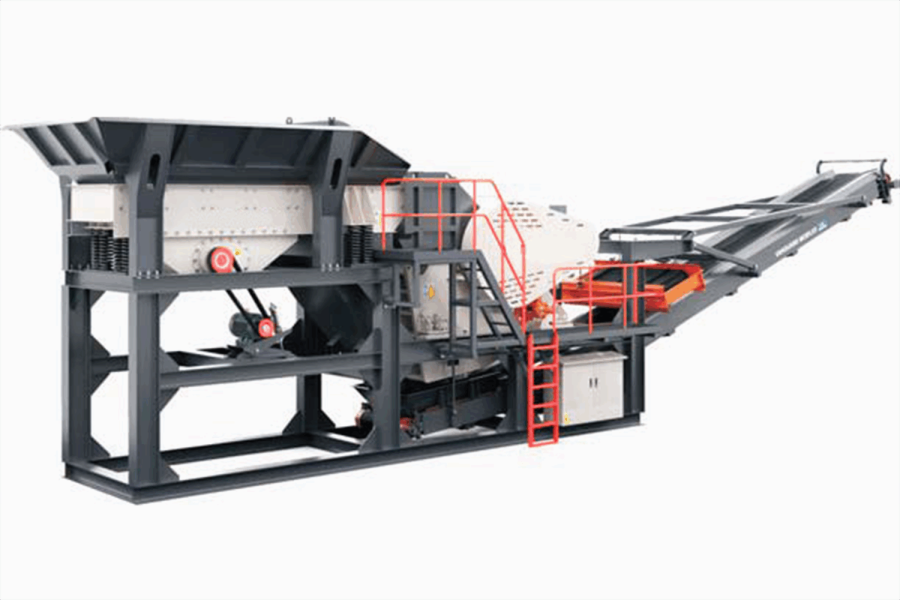

Jaw Crushing Plant

Jaw Crushing Plant
CategoriesMobile Crushing Plant
BrandD&G Asphalt Plant Manufacturer
ModelMultiple Models
TypeModular Type
Origin of PlaceChina
ColorCustomizable
FOB portTIANJIN
Terms of PaymentL/C, T/T
Update TimeNov 14,2024
Detail Information
Jaw Crushing Plant D&G Machinery manufacturer China
Jaw Crushing Plant

Jaw crusher with the optimized plant frame and movable jaw, mainly used for crouse and fine crush for mining and aggregate. It can be equipped different specification feeder, jaw crusher, belt conveyer as well as other modular components according to the demands.





Product Feature:

1. The feeding equipment is equipped with a debris screening mesh installed below the grizzly bars, and the clearance between the grid bars can be adjusted as needed.
2. Crusher -new type of European version jaw crusher, which allows for a larger feed size and greater crushing capacity. It also has a hydraulic adjustment for the discharge outlet, making it convenient and efficient.
3. High-quality integrated conveyor - sturdy, durable, and resistant to deviation.
4. The conveyor adopts a large radius transition with rounded corners and a low-profit zone welding method. It has characteristics such as impact resistance, uniform force distribution, and low failure rate.
5. Iron removal device (optional) - suspended iron remover with adjustable height.
6. Electrical control system is equipped with dustproof, waterproof, and vibration-proof features, making it simple to operate while ensuring safety and reliability.
Product Parameters

ITEM
DESCRIPTION
SPECIFICATION
DIMENSION(M)(Length x width x height)
MBP-C80
Feed Conveyor
ZSW3090
14.5 X 2.6 X 4
Jaw Crusher
C80
Discharge Conveyor
B650X12
MBP-C96
Feed Conveyor
ZSW3896
16 X 2.8 X 4.1
Jaw Crusher
C96
Discharge Conveyor
B800X12
MBP-C106
Feed Conveyor
ZSW4211
16.5 X 2.9 X 4.3
Jaw Crusher
C106
Discharge Conveyor
B1000X12
