DGX Asphalt Mixing Plant

DGX Asphalt Mixing Plant
DGX Asphalt Mixing PlantDGX Asphalt Mixing PlantDGX Asphalt Mixing PlantDGX Asphalt Mixing PlantDGX Asphalt Mixing Plant
CategoriesRAP Batch Asphalt Mixing Plant
BrandD&G Asphalt Plant Manufacturer
ModelDGX2000-DGX5000
Mixer Capacity2000-6000kg
Control SystemDG Leap + PLC
Dust CollectorPrimary gravity + Bag filter
Place of OriginChina
FeatureBest performance, High Productivity
FOB portTIANJIN
Terms of PaymentL/C, T/T
Update TimeNov 14,2024
Detail Information
  • If you are planning to establish an asphalt mixing plant and would like to know about cost budgeting and how to select and price asphalt mixing plants, we will provide you with more technical support regarding the early stages of your asphalt mixing plant. Additionally, if you wish to become a distributor of DG's localized asphalt mixing plant, we will offer you more support to expand your local market. Contact us now for more information about DG asphalt mixing plant consultations.

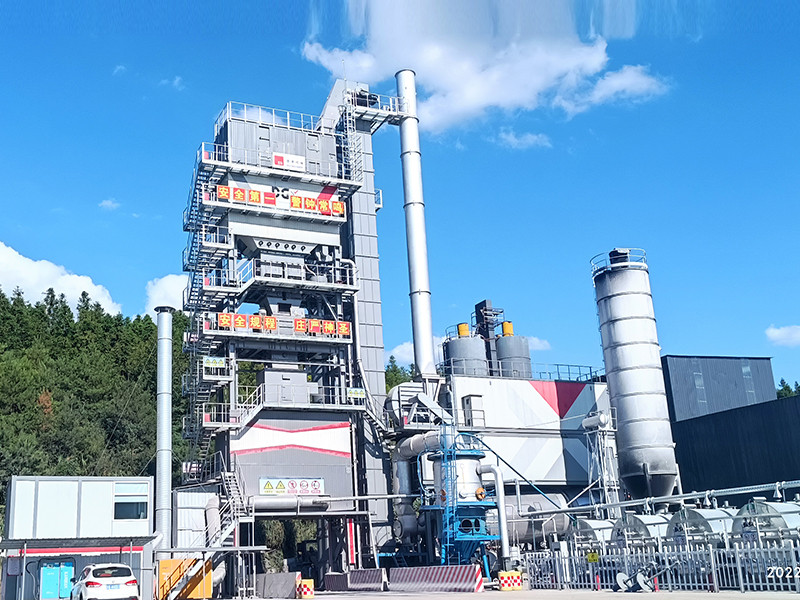

DGX asphalt mixing plant D&G Machinery

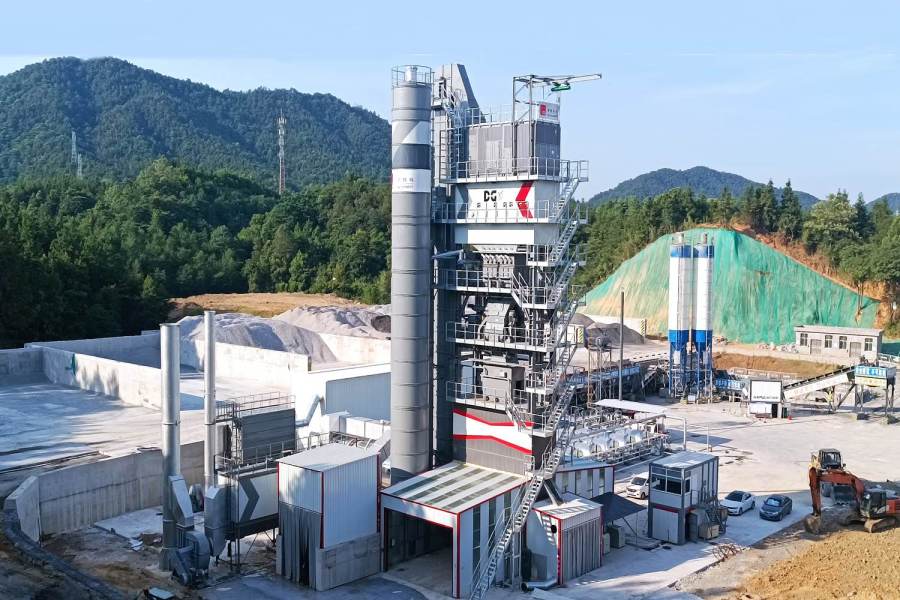

DGX Asphalt Mixing Plant

DGX asphalt mixing plant adopts the idea of cross model on planning and design, which can realize the conversion of different equipment styles and functions and meet the requirements of different production conditions with each functional module is combined according to different modes. For the need of production, which can be assembled according to its type.


Contact us to get the product catalogue!

DGX Asphalt Mixing Plant Features:

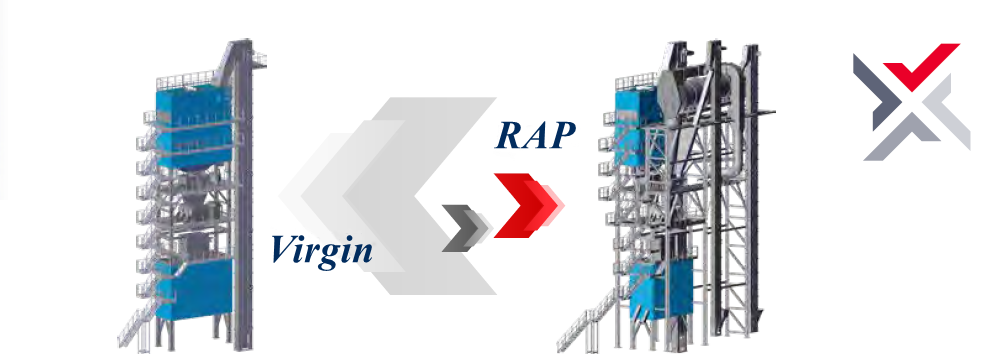

1. One Machine with Multi Type on Demand Combination

Multi Type Combination All-in-one DGX asphalt mixing plants
2. Top Class Components
For assure the stable and service life of asphalt plant, D&G selected the most famous brand for key components supplier. There are ROSSI MotorIduttori, SIEMENS, SKF, WAMGROUP, ABS and others prestigious supplier included in our supply chain. We always keep pace with the international advanced technology.

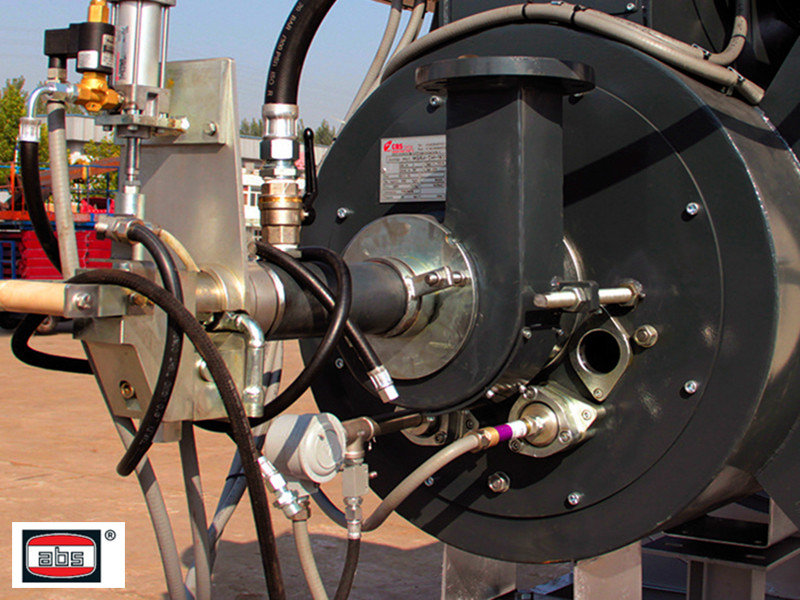

Abs-Burner D&G Machinery DGX asphalt batch mix plants
Abs-Burner

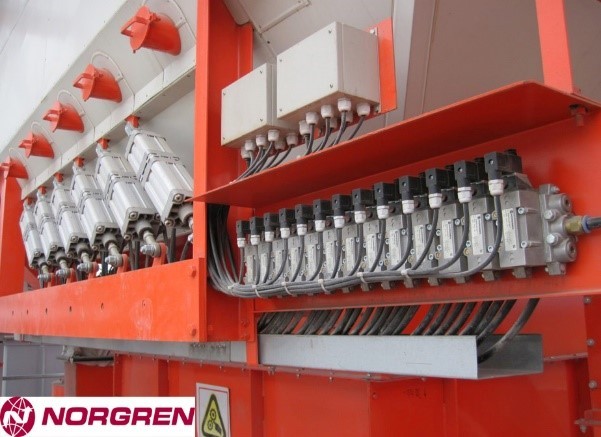

DGX asphalt mixing plants China NORGREN-Pneumatic Elements
NORGREN-Pneumatic Elements

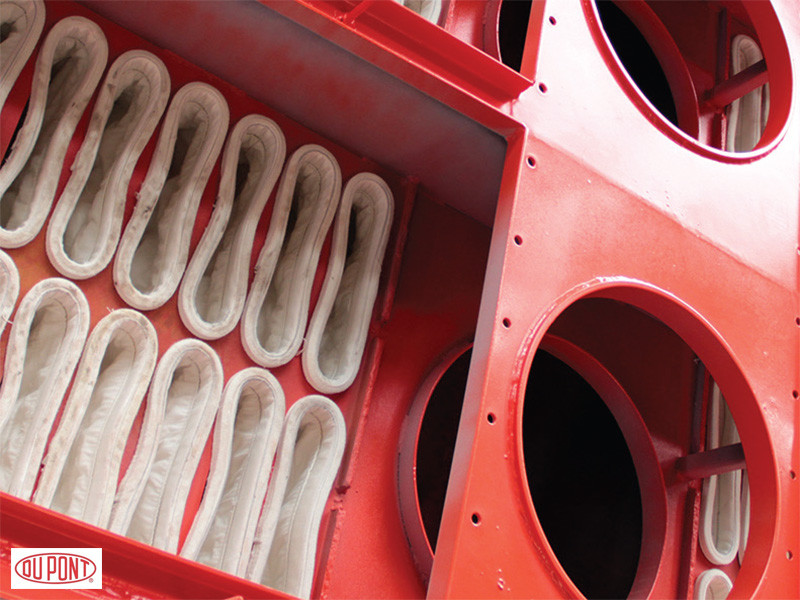

DGX asphalt batch mix plants Dupont-Bag Filter premium components
Dupont-Bag Filter

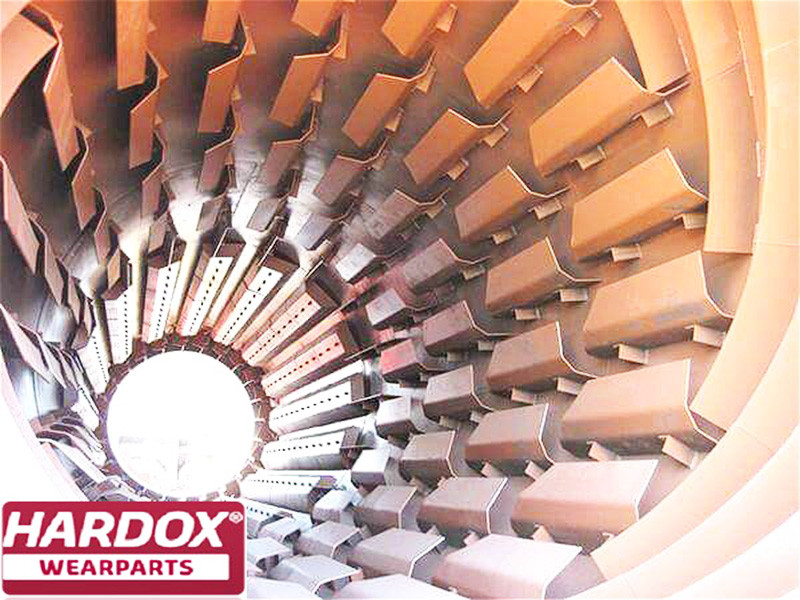

HARDOX- Dryer Drum DGX asphalt mixing plants D&G Machinery China supplier
HARDOX- Dryer Drum

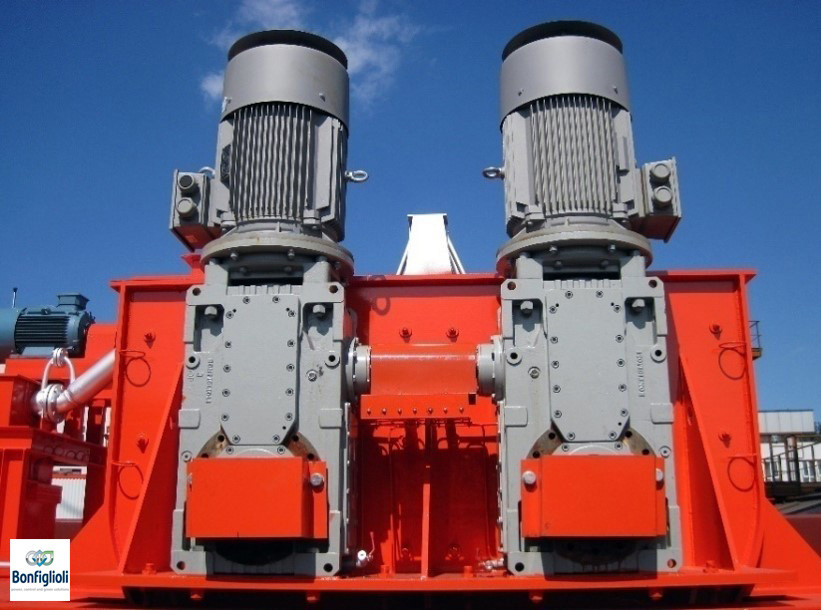

Bonfiglioli-Reducer DGX asphalt batch mix plants China high-quality components
Bonfiglioli-Reducer

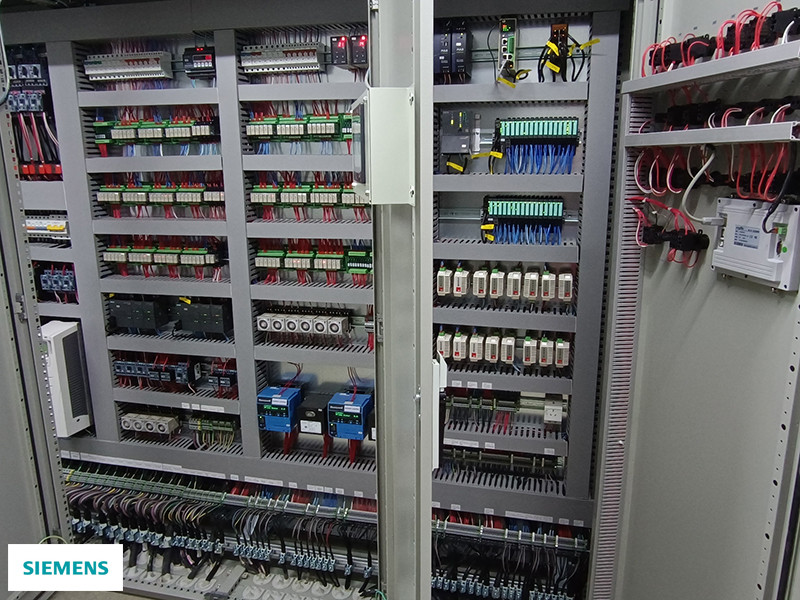

SIEMENS-Electric Parts DGX asphalt batch mix plants supplier China
SIEMENS-Electric Parts
3. High Productivity
Because of the sufficient capacity of drum\vibrator\mixer, the plant can reach normal productivity easily and even can get more productivity if have the proper raw material supply.

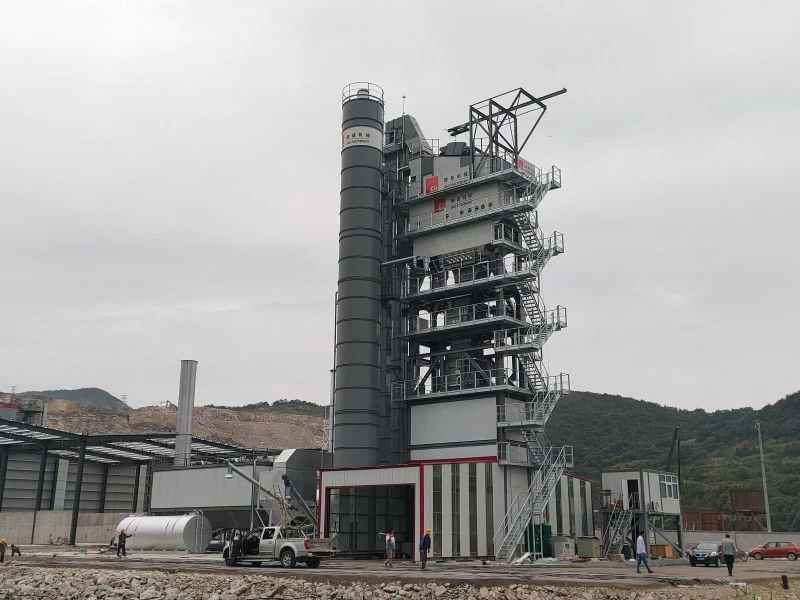

Mixing Tower:

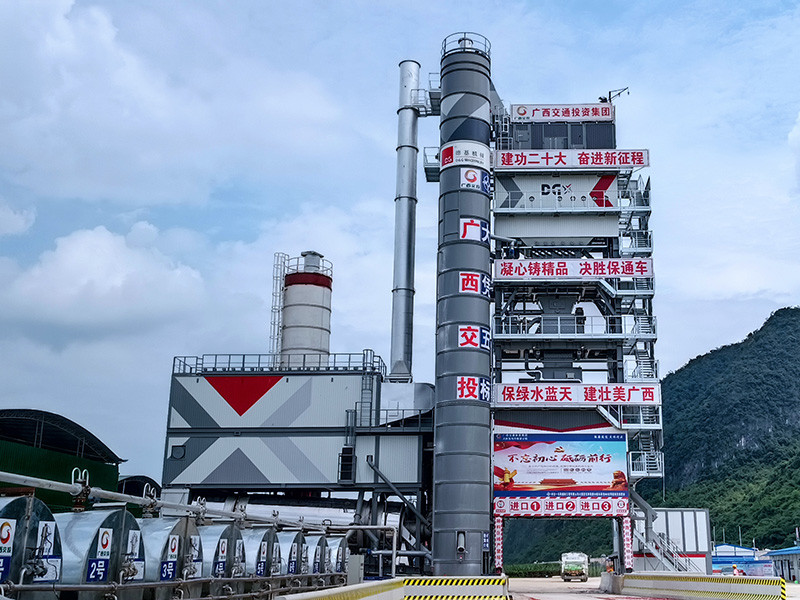

DGX asphalt mixing plants mixing tower China
DGX asphalt mixing plants mixing tower China

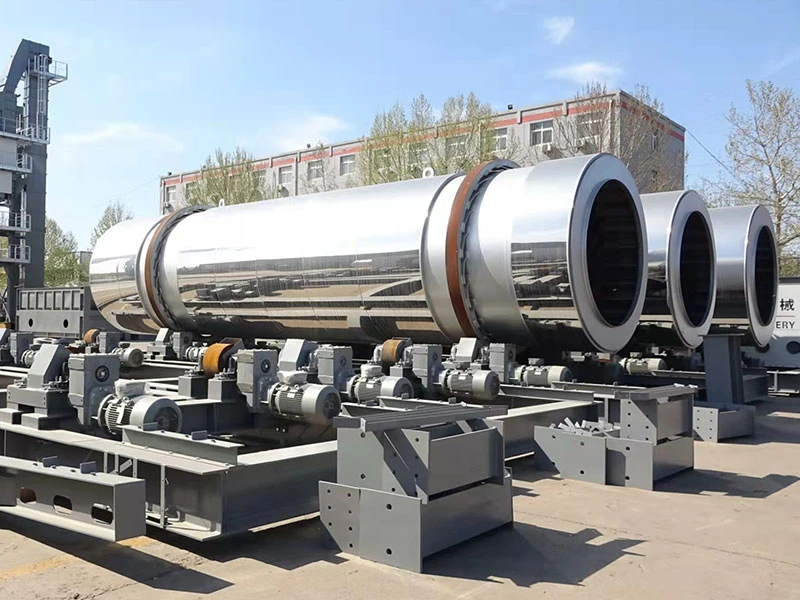

Drying System:
DGX asphalt batch mix plants drying system dryer drum

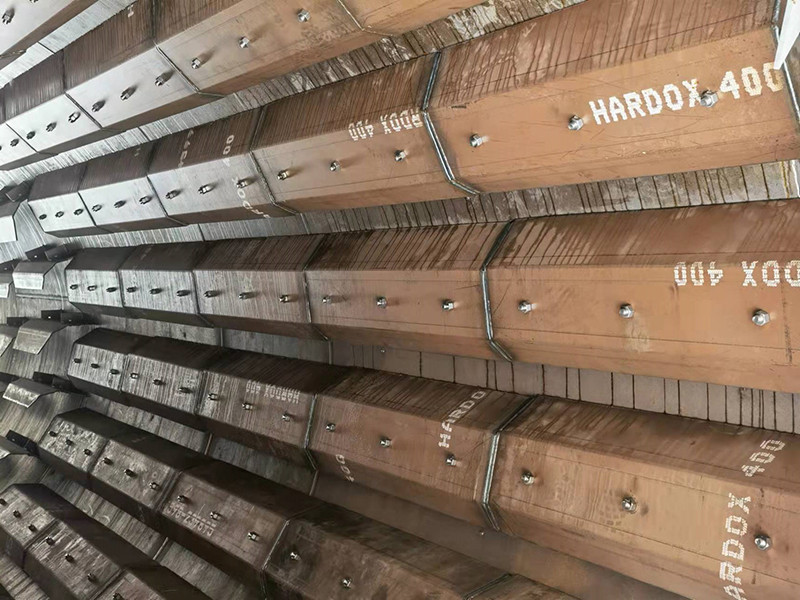

DGX asphalt mixing plants Hardox wearparts long service D&G Machinery
 The drum flights are applied in HARDOX high strength wear-resistance steel to prove long service time.
 Employing thermal insulating rock wool material that can keep the energy inside, reducing heat loss.
 Multiple-function ABS burner, kinds fuel (gas, oil, diesel, coal) can be chose as required.
4. Customization
Customers can get professional consultation from initial project to model selection phrase from D&G machinery. We provide flexible customized options which can meet various needs of customer.
5. Accurate Measurement
D&G self-developed know-how "AIntelligent bitumen measurement system" ensure the pre-set recipe can be implement with minimum deviation value. In the meantime, the waste of bitumen and other materials are eliminated.
DGX asphalt batch mix plants aggregate weighing hopper D&G Machinery
The aggregate weighing hopper

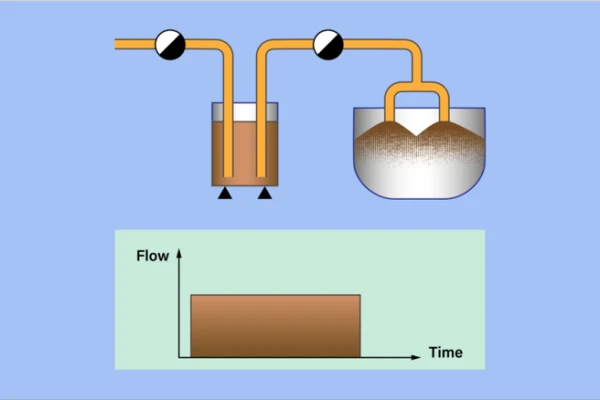

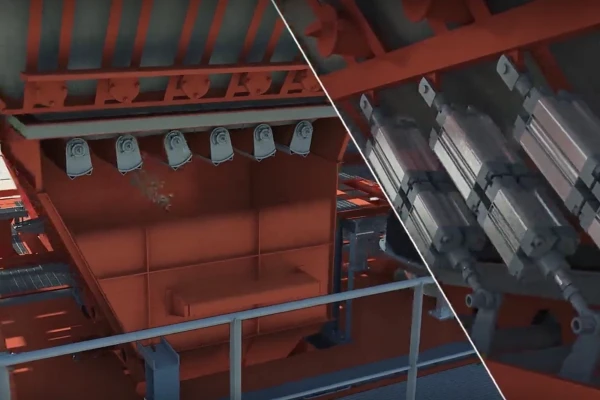

Secondary twice Intelligent Bitumen Measurement System DGX asphalt mixing plants China
Secondary Intelligent Bitumen Measurement System
6. Smart Control System
The system configured with Siemens PLC which have 2 cabling configuration options: PROFI-bus and distributed control system. Both mode can assure the signal feedback in Real time without lag off.

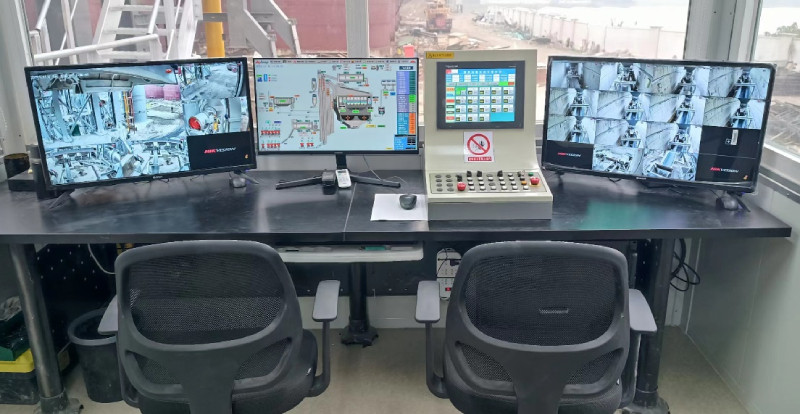

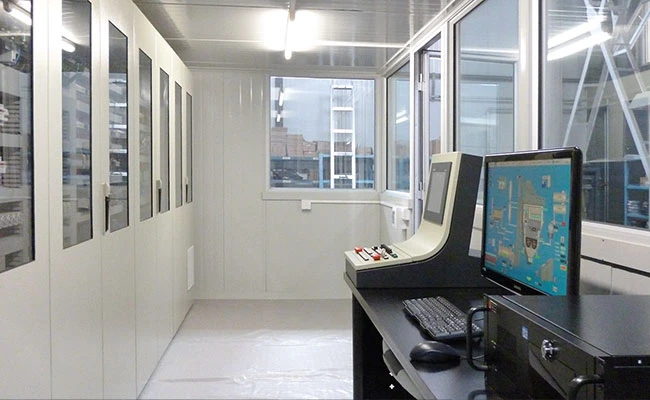

DGX asphalt batch mix plants control room
DGX asphalt mixing plants control system DGleap Siements PLC
DGX Asphalt Mixing Plant Parameters

SPECIFICATION
MODEL-DGX Series
DGX2000
DGX3000
DGX4000
DGX4500
DGX5000

Rated Production Capacity
180 t/h
240 t/h
320 t/h
360 t/h
400 t/h
Cold Feeder Bin
5 x 10m3
5 x 18m3
6 x 18m3
6 x 18m3
6 x 18m3

Dryer Drum Size
Ø 2.2m x 9m
Ø 2.5m x 9m
Ø 2.8m x 12m
Ø 2.8m x 12m
Ø 3.0m x 12m
Dust Collector
Primary gravity + Bag filter
Screen
5
5 or 6
 6
6
6

Hot Bin Volume
21m³
45m³
75m³
75m³
80m³
Mixer Capacity
2000kg
3300kg
4200kg
5500kg
5500kg
Control System
DG Leap + PLC
Emission Rank
● Dust Density ≤ 20 mg/Nm³
● Cabin Noise ≤ 70 dB
● Ringelmann Blackness Class Ⅰ
Note:
● Some specifications / options might not be available in some countries due to local regulations.
● Specifications / options are constantly updated and subject to change.

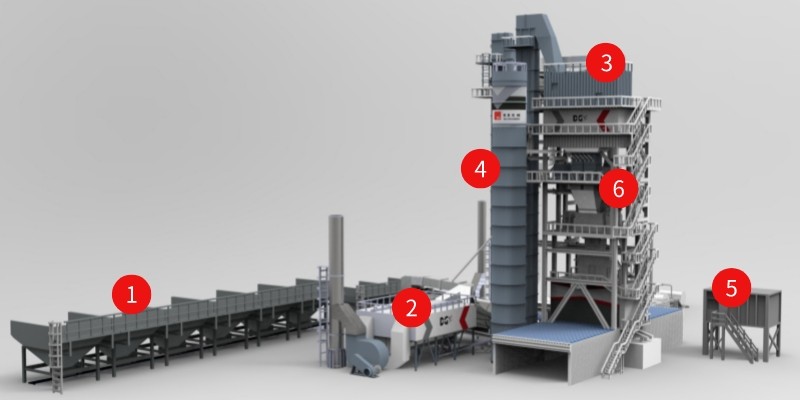

DGX Asphalt Mixing Plant Components

DGX Asphalt Mixing Plant Components
DGX Asphalt Mixing Plant

1. Cold feeder system

2. Dust collecting system

3. Vibrating screen

4. Filler system

5. Control room

6. Mixing tower

DGX Asphalt Mixing Plants cold feeder system D&G Machinery

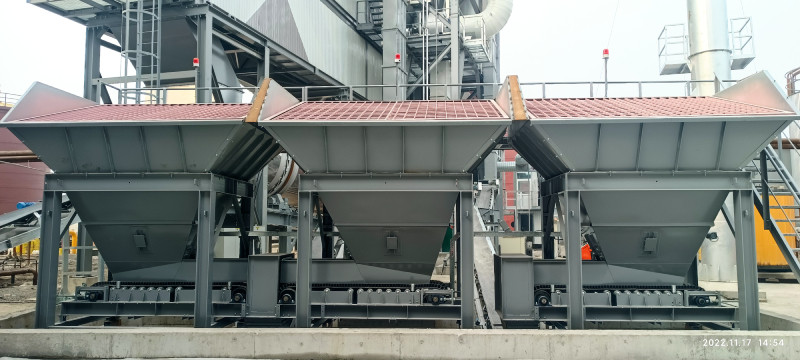

1. Cold Feeder System


1) Frequency inverter belt conveyor.

2) Each compartment is equipped with an aggregate shortage alarming device.

3) Belt driving system consisted of Siemens motor+ Bonfiglioli reducer+ SKF bearing.

DGX Asphalt batch mix plants drying system Hardox ABS burner

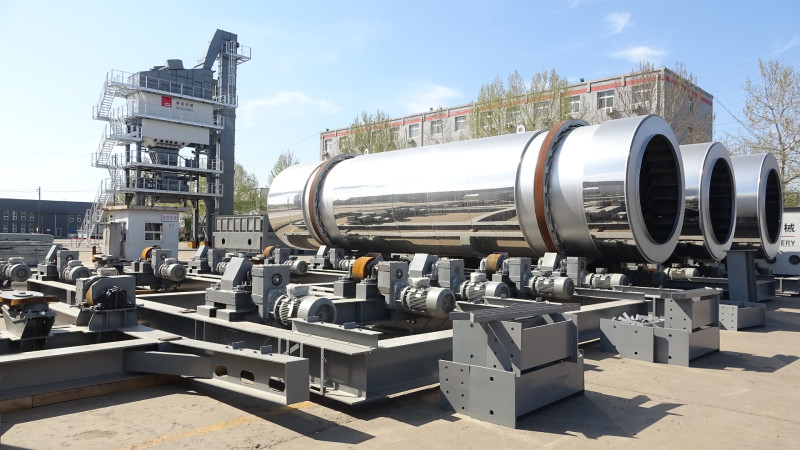

2. Drying System


1) The drum flights are applied in HARDOX high strength wear-resistance steel to prove long service time.

2) Employing thermal insulating rock wool material that can keep the energy inside, reducing heat loss.

3) Multiple-function ABS burner, kinds fuel (gas, oil, diesel, coal) can be chosen as required.

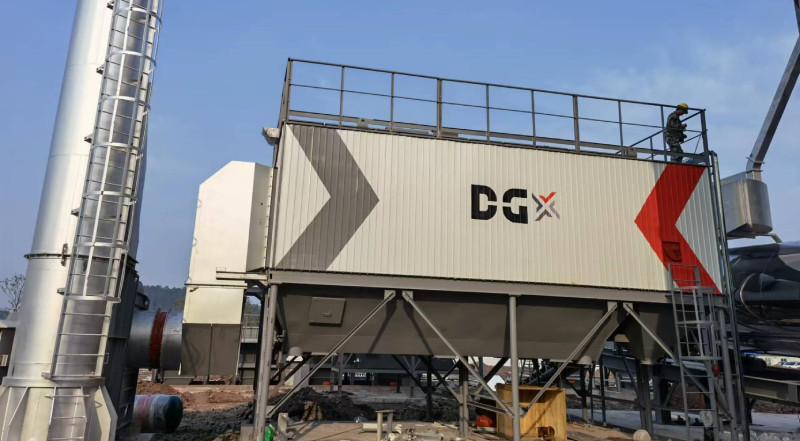

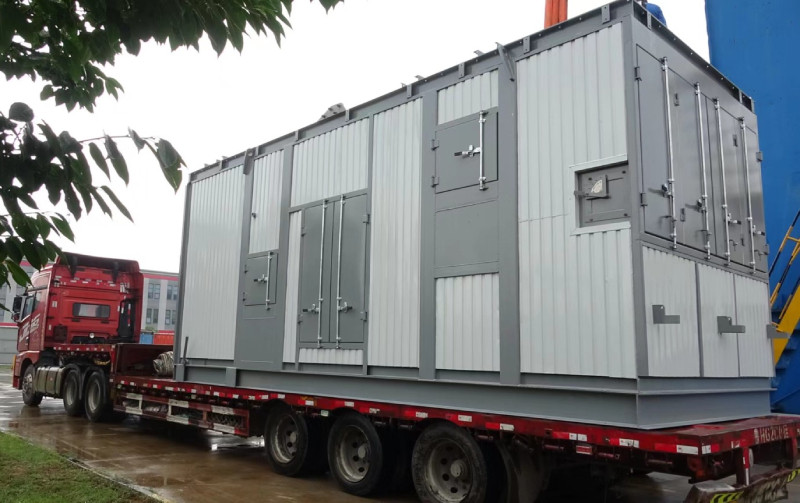

DGX Asphalt Mixing Plant dust collecting system D&G Machinery
3. Dust Collecting System


1) Two stage dust filtration system: primary gravity+ bag filter.

2) Frequency control exhaust fan.

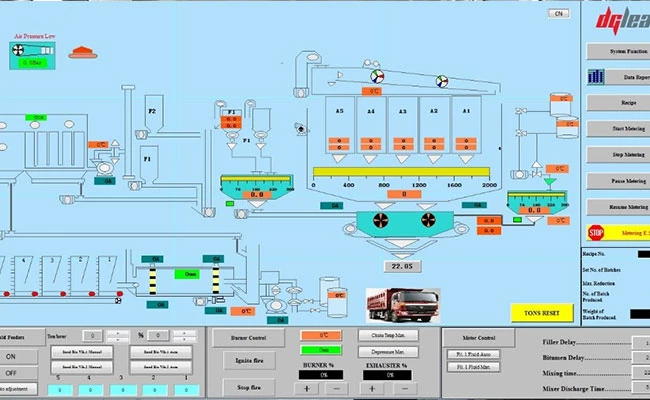

DGX Asphalt batch mix plants DGleap automatic and manual control system
4. Control System


1) "DG LEAP" Automatic and manual control can be switched.

2) System configured with Siemens PLC.

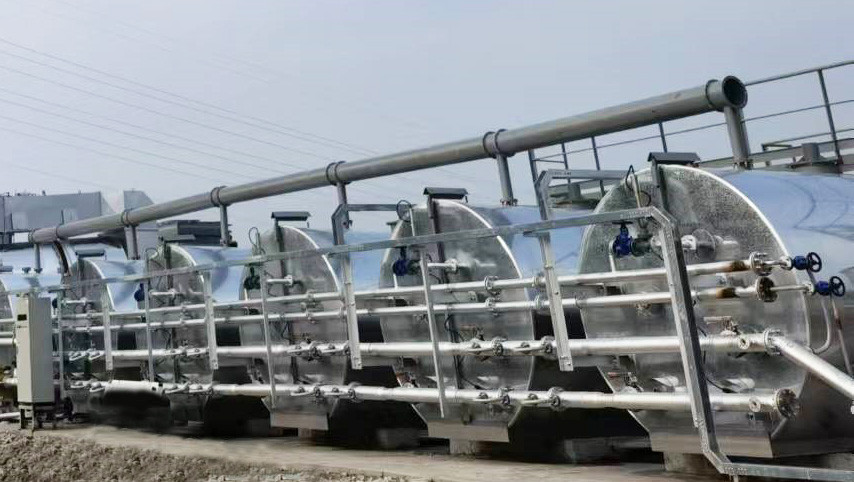

DGX Asphalt Mixing Plant bitumen tanks
5. Bitumen Tank


1) Thick thermal insulation layer on bitumen tanks and pipes, minimal heat loss.

2) Liquid level indicators and thermometers are installed on bitumen tanks; easy for observation and operation.

3) Circulating pump to control the bitumen flow.

DGX Asphalt Mixing Plants vibrating screen China supplier D&G Machinery
6. Vibrating Screen


1) Double vibration motor.

2) Sufficient vibrating force to prove high sieving efficiency.
