DGC Compact Series DG2500T220AC 200t/h asphalt batch mixing plant
DGC Compact Series DG2500T220AC 200t/h asphalt batch mixing plant
| Categories | Stone Crushing Plant |
|---|---|
| Brand | D&G Asphalt Plant Manufacturer |
| Model | DG2500T220AC |
| plant type | shipper own container(soc) |
| Rated capacity | 200T/H |
| Installed power | Appr. 542kW (Standard Configuration) |
| Certification | ISO9001 |
| After-sales Service | on-site / online support |
| Machinery Test Report | Provide |
| Warranty of core component | 1 Year |
| Model | DG2500T220AC |
| FOB port | TIANJIN |
| Terms of Payment | L/C, D/A, T/T |
| Update Time | Aug 13,2024 |
Detail Information
TECHNICAL DATA
MODEL |
DG2500T220AC |
|||
Rated Production Capacity |
200 t/h |
|||
Cold Feeder Bin |
Number × Volume |
2 × 10 m³ |
||
Dryer Drum |
Diameter Ø |
ø 2.2 m |
||
Length | 9 m | |||
Fuel Type | Diesel / Heavy Oil / Nature Gas | |||
Drying Capacity | ||||
– Moisture Content 3% | 220 t/h | |||
– Moisture Content 5% | 200 t/h | |||
Bag House | Dust Filtering Method | (1st Stage) Pre-separator + (2nd Stage) Bag Filtering House | ||
Main Tower | Screening | 5 | ||
Screening Area | 28.1 m² | |||
Hot Bin Quantity | 5 + 1 | |||
Hot Bin Overall Volume | 40 m³ | |||
Aggregates Weighing | 2500 kg | |||
Filler Weighing | 250 kg | |||
Bitumen Weighing | 250 kg | |||
Mixing Power | 2 × 37 kW | |||
Mixing Capacity | 2500 kg | |||
Filler Scaling & Feeding | Vari-Frequency Screw, Compelled and Well-Distributed Feeding Design. | |||
Bitumen Scaling & Feeding | Dynamic 2-Stage Measurement, High Pressure Uniformly Spray. | |||
Mixing | 2 Horizontal Mixing Shafts, Dual-Motor Driven with Synchronous Reducer. | |||
Control System | • DGLeap Control System 2.0ontrol System 2.0 • Large Screen Industrial Computer • PLC Touch Screen HMI • Laser Printer • Air-Conditioned Control Cabin | |||
Environment Index | • Dust Density⩽20mg/Nm³ • Ringelmann Blackness Class 1 • Noise in Control Cabin ⩽70dB | |||
The above specifications are for reference only. D&G Machinery reserves the right to make changes in engineering, design and improvement at any time without prior notice or obligation. | ||||

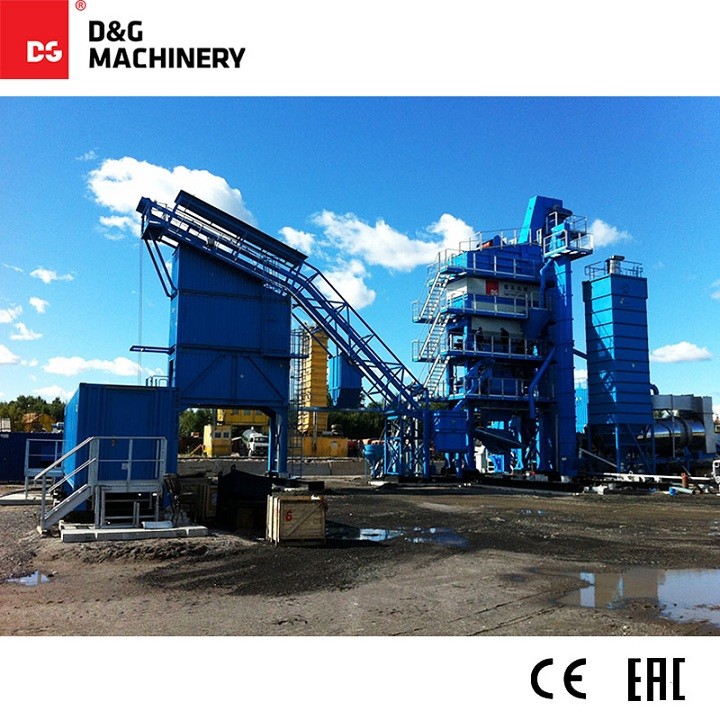

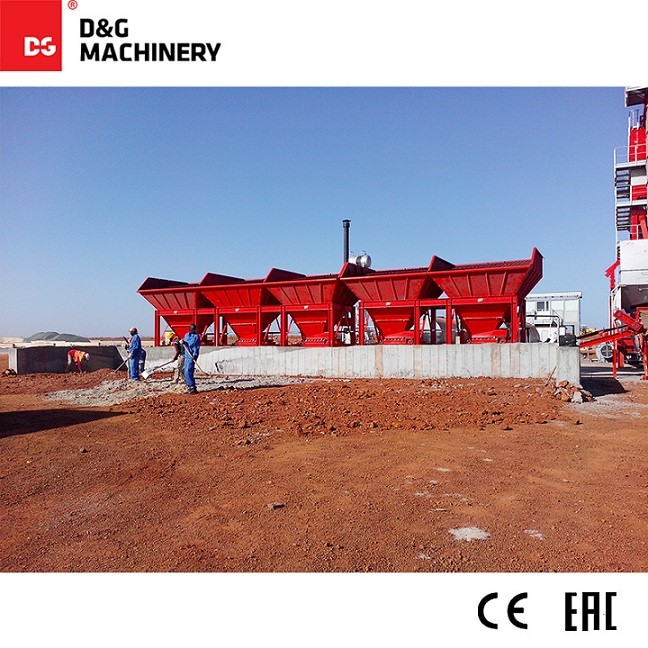

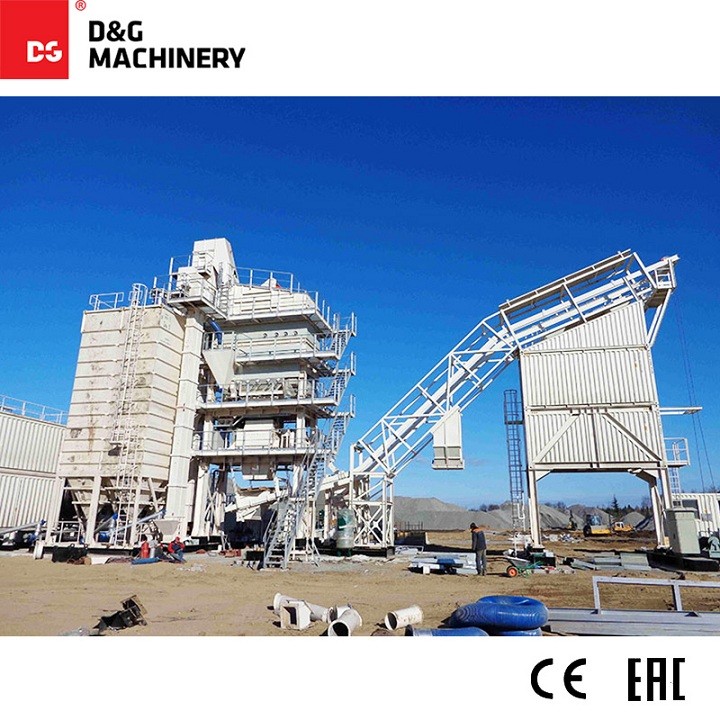

PRODUCT DISPLAY
