The Tacit Partner of Asphalt Mixing Plant—Crusher and Screener Equipment
Apr 23, 2024
In recent years, the demand for sand and gravel production capacity has shown a sharp upward trend. Subsequently, the crusher and screener equipment production line has become increasingly prominent in the industrial chain. They are used in mineral resource development, construction material production, waste material processing and other fields. plays a vital role.
Since D&G Machinery's crusher and screener equipment was launched on the market, it has accumulated rich experience and technical reserves in project applications. Among them, the RCS series 80-200t/h production line has been installed in Hunan, Jiangxi, Henan, Tianjin, and Guangdong and it has been successfully applied in Thailand, Hong Kong and other places, and has strong market competitiveness.
Rich project experience and rapid production (some cases)
Equipment Model：RCS80B
Production Time：December 2021
Location：Ganzhou, Jiangxi

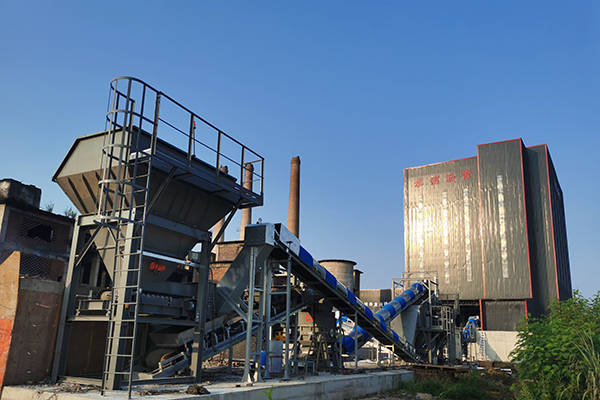

Project：The on-site project production line uses D&G Machinery's RCS80B crusher and screener equipment. It adopts a production process of crushing first and then screening. The maximum production capacity of the equipment is 80t/h, which can effectively reduce fake aniseed. Suitable for customers with higher requirements for recycled materials. It brings actual economic value to customers, effectively reduces material transportation costs, and increases the added value of products.
Equipment Model：RCS150A
Production Time：October 2022
Location：Zhanjiang, Guangdong

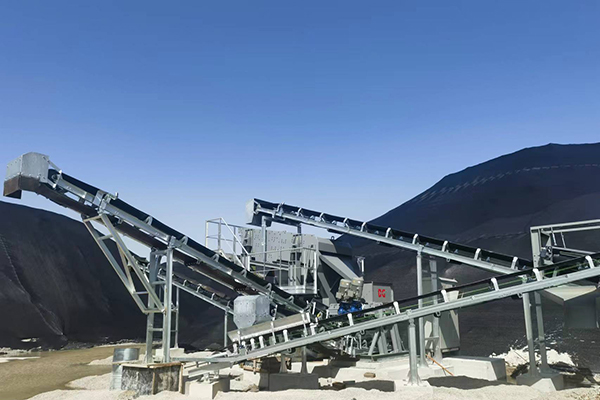

Project：This project is located in Zhanjiang, Guangdong, and the customer is Zhanjiang Yutong Bridge Engineering Co., Ltd. The on-site project production line adopts D&G Machinery's DGXR4500 asphalt mixing plant + DGMSX300 shaping sand making equipment + RSC150A crusher and screener equipment. The process is simple and efficient, and the production lines are rich.
Equipment Model：RCS100A
Production Time：April 2023
Location: Tian Jin
Project：The on-site project production line uses D&G Machinery's RSC100A crusher and screener equipment, which has good benefits. At the same time, we also completed a renovation project for the customer's asphalt mixing plant.
Brand core strength
D&G Machinery's crusher and screener equipment adopts a fixed and modular design, with flexible matching, convenient installation and easy relocation. It is suitable for the working conditions of asphalt mixing plants. It is the absolute strength of stone crushing, with a large crushing ratio and good finished product particle shape with more powerful material handling capabilities.
Advantages of crusher and screener equipment：
1.The crushing teeth of the double-roller crushing head have a true rubbing structure, which enables flexible crushing and very little hard extrusion to amage the original gradation of the recycled materials.
1）There is a sdlope structure on one side of the crushing teeth, which plays a force-relieving role to avoid hard extrusion of aggregates and damage to the original gradation;
2）The crushing teeth between the two roller heads are staggered and arranged asymmetrically along the axial direction. When the recycled material passes through the roller gap, there is axial movement at the same time to achieve disintegration.
2. The two roller heads are arranged in a horizontally staggered position, which can realize the passage of large lumps of recycled materials. In the actual production process, 150mm lump materials and 100mm lump materials can be passed.
3. The screening system structure adopts the same form as the vibrating screen of the asphalt mixing plant. Whether the 2nd or 3rd grade materials are discharged, they are integrated into one vibrating screen to reduce the site layout area.
4. The crushing head has ample production capacity, with a length of 1200mm, a motor drive power of 2×22KW, and an effective crushing capacity of ≥80t/h.
5. The control system is equipped with a self-protection device. When encountering a hard object that cannot pass, the two roller heads will try to rotate forward and reverse for up to 5 consecutive times. If it still cannot pass, it will be forced to stop and the operator will intervene for inspection.
Production line construction, shortening the construction period
D&G Machinery has strong project implementation experience in the crusher and screener production line, which can help users speed up the installation progress, shorten the construction cycle and save construction costs to the greatest extent. If you have any needs for supporting the production line of crusher and screener equipment, you are welcome to contact us and we will have professional personnel to connect with you!
