Single-Cylinder Hydraulic Cone Crusher - CH/CS
Single-Cylinder Hydraulic Cone Crusher - CH/CS
| Categories | Flat-type Crushing Plant |
|---|---|
| Brand | D&G Asphalt Plant Manufacturer |
| Model | Multiple Models |
| Type | Flat Type |
| Origin of Place | China |
| Color | Customizable |
| FOB port | TIANJIN |
| Terms of Payment | L/C, T/T |
| Update Time | Nov 14,2024 |
Detail Information

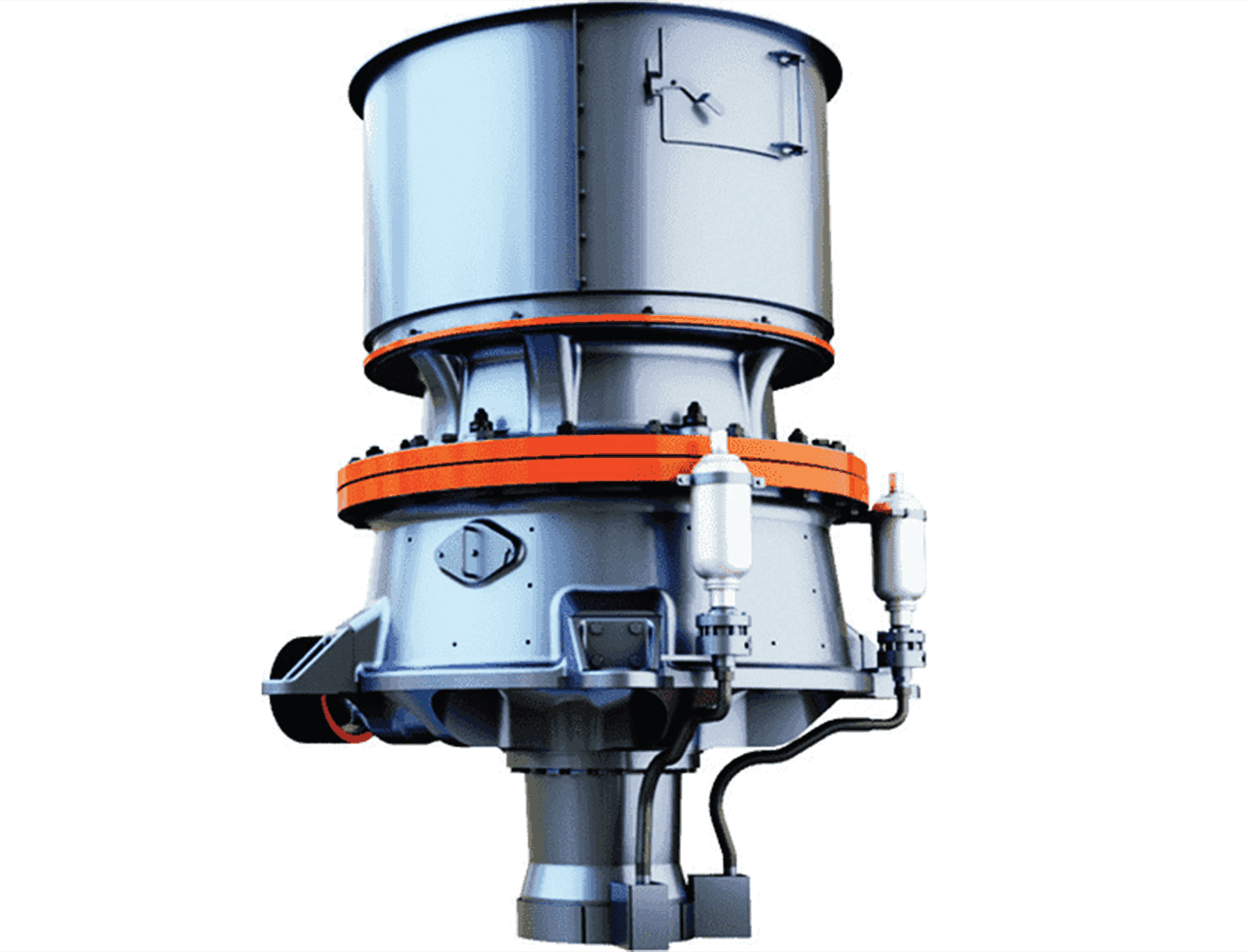

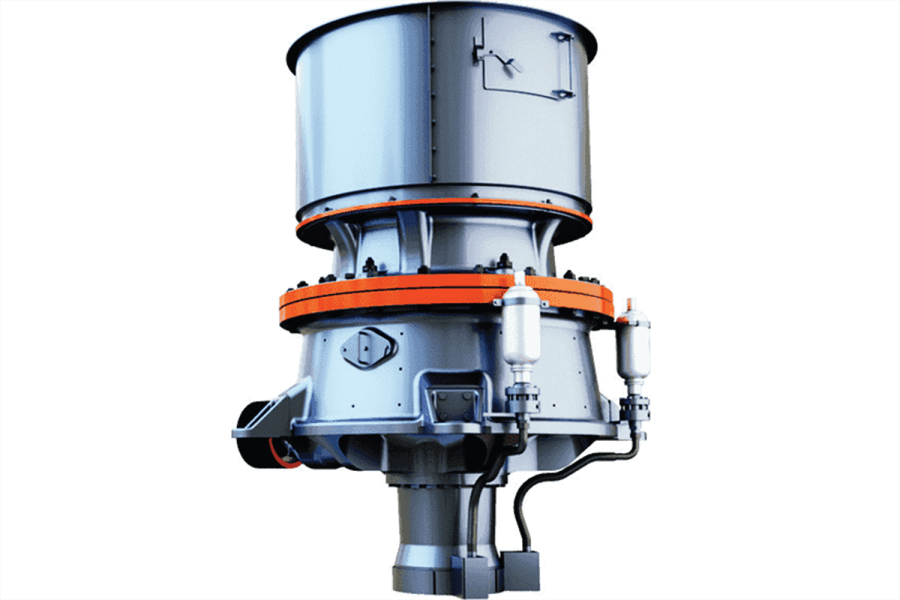

Single-Cylinder Hydraulic Cone Crusher - CH/CS
The product has hydraulic locking and hydraulic adjustment capabilities, as well as iron release and cavity clearing functions. Its equipped hydraulic system and lubrication system ensure the safe and normal operation of the equipment. The hydraulic system can control the size of the discharge port through flexible adjustment of the pushing cylinder, achieving control over the particle size and production capacity of the discharged material. The electrical control system incorporates multiple electronic intelligent displays and self-locking control devices for equipment safety protection, allowing for safe real-time monitoring of oil temperature, oil pressure, flow rate, emergency situations, and timely.
Product Parameters:
|
Model
|
Max.Maintenance Weight(kg） |
Motor Power(kW) | Production Capacity(t/h) | Weight(ton) |
CH430 | 5200 | 132 | 120-150 | 10500 |
CS430 | 3000 | 132 | 150-200 | 12000 |
CH440 | 8200 | 220 | 180-220 | 153000 |
CS440 | 4800 | 220 | 300-500 | 19300 |
CH660 | 16800 | 315 | 350-450 | 24200 |
CS660 | 8600 | 315 | 380-650 | 35700 |
CH870 | 13200 | 560 | 450-860 | 49800 |
