Jaw Crusher - PE
Categories | Flat-type Crushing Plant |
---|---|
Brand | D&G Asphalt Plant Manufacturer |
Model | Multiple Models |
Type | Flat Type |
Origin of Place | China |
Color | Customizable |
FOB port | TIANJIN |
Terms of Payment | L/C, T/T |
Update Time | Nov 14,2024 |
Detail Information

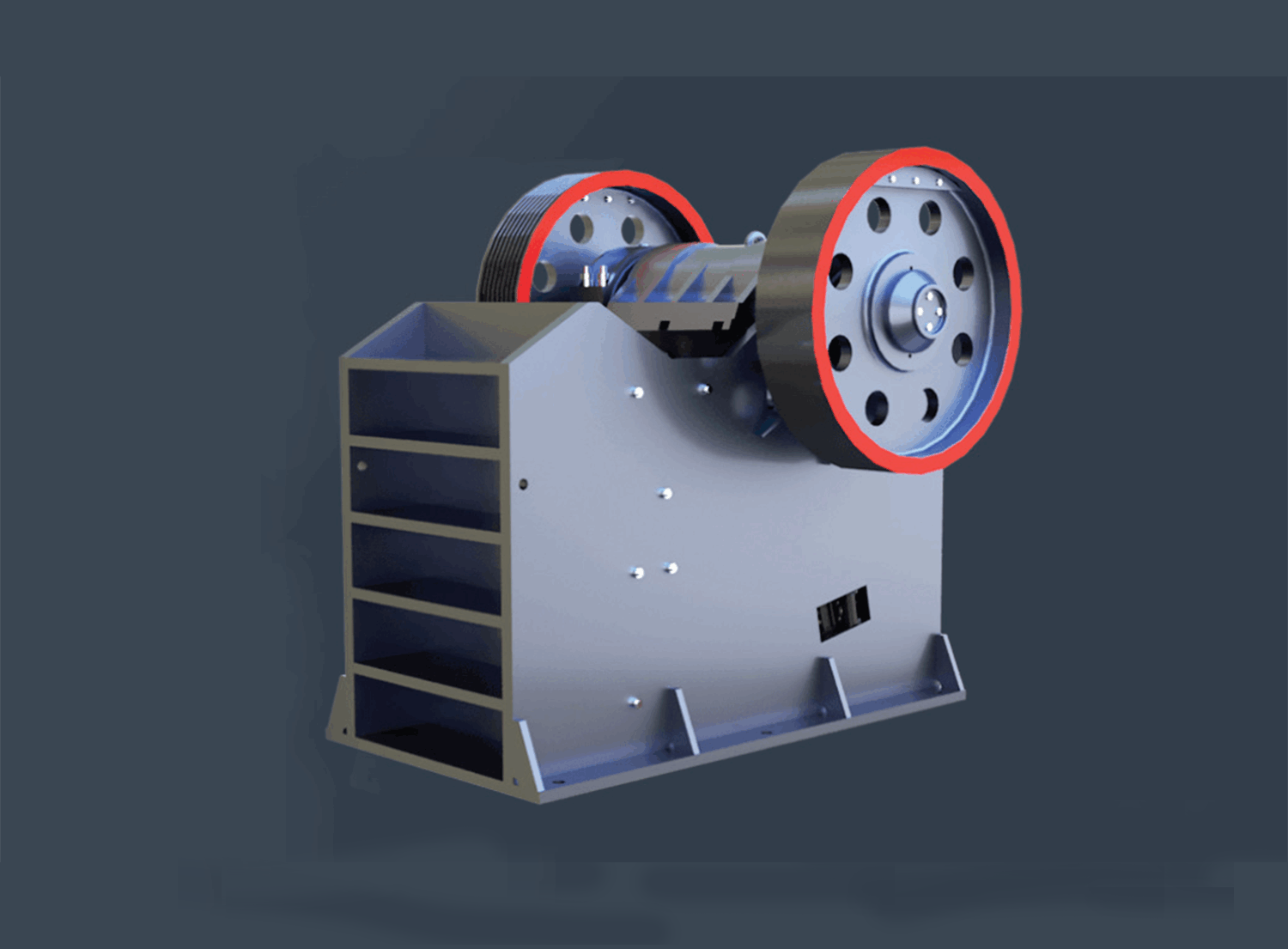

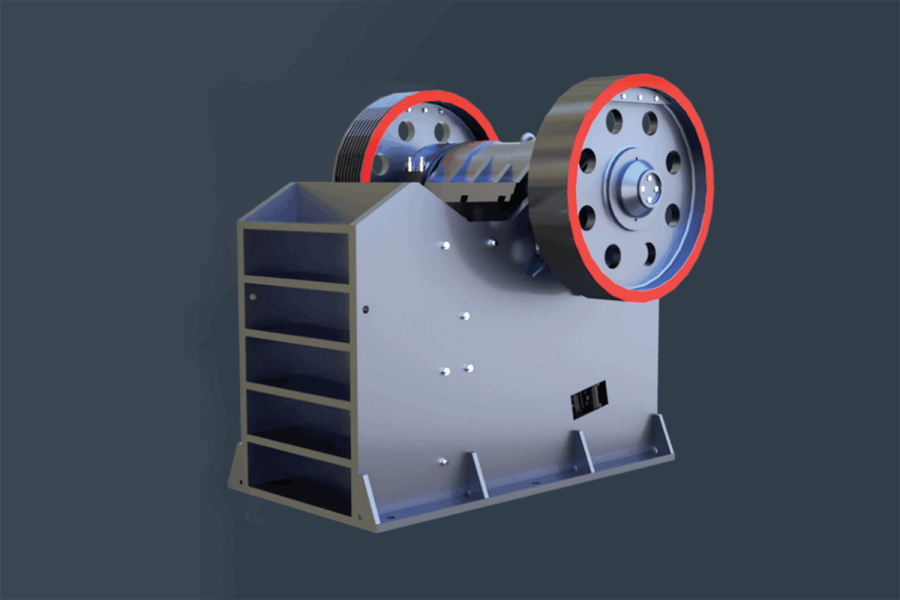

Jaw Crusher - PE
This product achieves the crushing purpose by the reciprocating motion of the moving jaw and the fixed jaw, squeezing, rubbing, and grinding the material in the crushing chamber. In recent years, to meet the needs of crushing high strength and high hardness ores in metallurgy, mining, construction, and other industries, a strong jaw crusher has been specially developed.
Product Parameters:
Specification
|
Feed Opening Size(mm)
|
Max.Feeding Size(mm)
|
Range of Outlet(mm) | Capacity(t/h) | Eccentric Shaft Rotation Speed(r/min) | Motor Power(kW) | Total Weight(t) | Overall Size( L x W x H) |
PE-500X750 | 500X750 | 425 | 50-100 | 40-110 | 275 | 55 | 12 | 1980X2080X1870 |
PE-600X900 | 600X900 | 500 | 65-160 | 50-180 | 250 | 55/75 | 15.5 | 2190X2206X2300 |
PE-750X1060 | 750X1060 | 630 | 80-140 | 110-320 | 250 | 90/110 | 29 | 2660X2430X2800 |
PE-900X1200 | 900X1200 | 750 | 95-165 | 220-450 | 200 | 110-132 | 52 | 3380X2870X3330 |
PE-1000X1200 | 1000X1200 | 850 | 195-300 | 280-560 | 200 | 110-160 | 58 | 3480X2876X3330 |
PE-1200X1500 | 1200X1500 | 1020 | 150-350 | 400-800 | 180 | 160-220 | 100.9 | 4200X3300X3500 |
PE-1500X1800 | 1500X1800 | 1200 | 220-350 | 500-1000 | 180 | 280-355 | 122 | 5160X3660X4248 |
PE-1600X2100 | 1600X2100 | 1500 | 300-400 | 1300-2200 | 160 | 350-380 | 150.6 | 6210X4013X4716 |
PEX-250X1200 | 250X1200 | 210 | 25-60 | 20-61 | 330 | 37 | 8 | 2140X1660X1500 |
PEX300X1300 | 300X1300 | 250 | 20-90 | 16-105 | 300 | 55-75 | 11.5 | 2720X1950X1600 |
