Asphalt Additive System
| Categories | Asphalt Additive Systems |
|---|---|
| Brand | D&G Asphalt Plant Manufacturer |
| Model | Multiple Types |
| Rated capacity | 26 KW, 380V AC |
| Size | 181cm*118cm*176cm |
| Weight | 1.2T |
| Capacity of weighing hopper | 0.6m³ |
| Dosing tolerance | <1.2% |
| Head of lift | >20m |
| FOB port | TIANJIN |
| Terms of Payment | L/C, T/T |
| Update Time | Nov 14,2024 |
Detail Information
Asphalt
Additive System

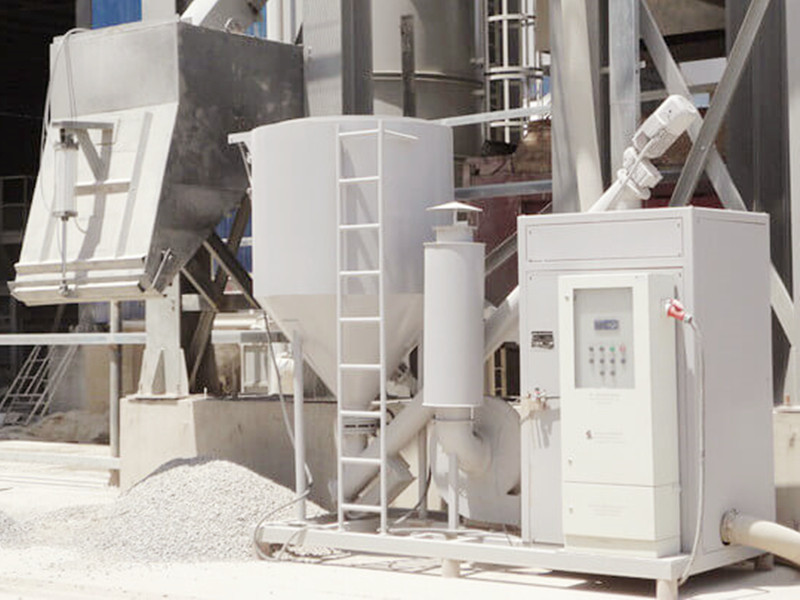

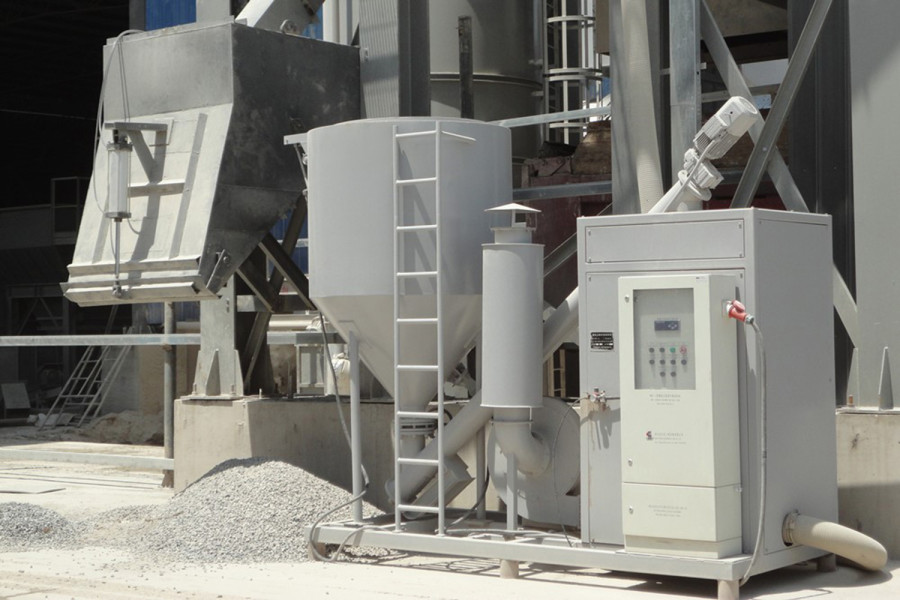

This asphalt additive system adopts the advanced CB4 weighing display and Siemens PLC, to add the anti-rutting pellet as well as xylem fiber. This device will start after get the signal from the controlling system, auto weighing, dosing and adding for the pellet, and integrated with automatic protection and alarm for the working failure. The dosing tolerance is 1.2 percent, with function of internet connection, printing, disc saving. This system has advantages of working stable, dosing accurate and easy to operating.
Product Features：
1. Main Components
Dosing system: with the display, dosing unit, weighing cell, coarse pellet separating device (include 1.5 KW motor, reducer, discharge winch), fine pellet discharging device integrated with 1.5KW motor, reducer and winch.
Conveying system: pellet feeding with 4KW motor and inlet seal, high pressure fine with 15 KW motor and pump, separating motor 4KW and conveying hose.
2. Effective Communication
Any inquiry will be fast replied. Accurately convey customer's information.
3.Products Quality
Our devices are manufactured strictly according to national and international standards, and we take a test on each equipment before delivery. You can use Trade Assurance for product quality protection, on-time shipment protection and payment protection..
Product Parameters
|
Rated Capacity
|
26 KW, 380V AC
|
|
Size
|
181cm*118cm*176cm
|
Weight | 1.2T |
|
Capacity of Weighing Hopper
|
0.6m³
|
Dosing tolerance | <1.2% |
Head of lift | >20m |
|
Capacity of lift pelletized filer
|
1-2kg xylem 1.5～2.5Kg
|
