Sand Manufacturing Machine |Tower-type Crushing Plant

Sand Manufacturing Machine |Tower-type Crushing Plant

Sand Manufacturing Machine |Tower-type Crushing Plant
Sand Manufacturing Machine |Tower-type Crushing PlantSand Manufacturing Machine |Tower-type Crushing PlantSand Manufacturing Machine |Tower-type Crushing PlantSand Manufacturing Machine |Tower-type Crushing PlantSand Manufacturing Machine |Tower-type Crushing Plant
CategoriesTower-type Crushing Plant
BrandD&G Asphalt Plant Manufacturer
ModelMS100-450
Rated capacity100-500t/h
Powder content3-18%
Place of originChina
Featuresclean, stable production, multifuctional output
FOB portTIANJIN
Terms of PaymentL/C, T/T
Update TimeNov 14,2024
Detail Information
Sand Manufacturing Machine D&G Machinery eco-friendly China
Sand Manufacturing Machine

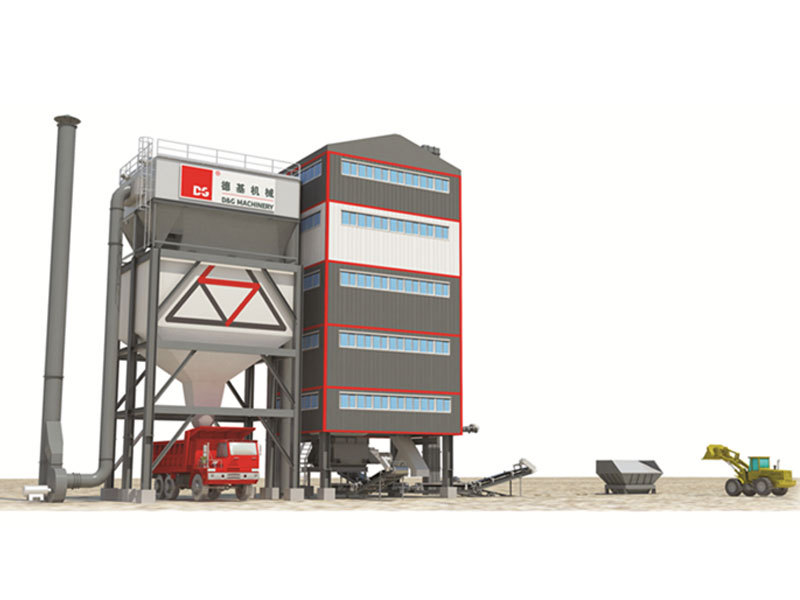

D&G MACHINERY introduced the eco-friendly type aggregate shaping & sand making plant, mainly use such as granite, limestone mine rock and tailings gravel as raw materials, with the vertical shaft impact sand making, vibrating screen, dust collection module, transmission module and other components, make the system complete sets of equipment to green, harmonization, intelligent, service direction, can realize clean production, accelerate transformation of the mode of economic growth has important strategic significance.

Product Features:

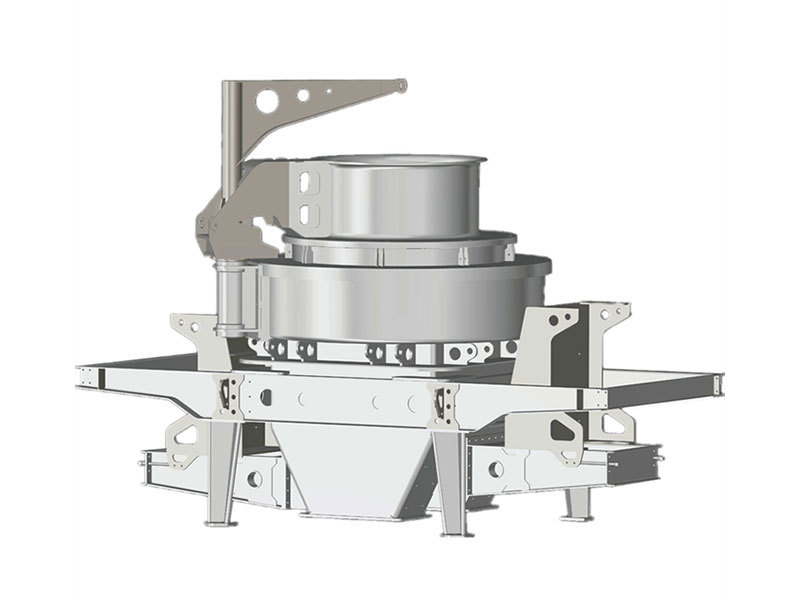

1. Multi-functional Combination-Shaping Integrated Equipment

The Four Channels impacted rotor structure integrates crushing, shaping, sand making. With central feeding, the material can obtain the highest kinetic energy (max 80m/s). Without increasing the power, the explosive falls into the material, which can increase the output

Sand Manufacturing Methods:
Sand-crash-sand:It is applicable to materials with medium hardness or above,with the material good particle shape and slightly more powder content.
Sand-crash-iron:It is applicable to materials with medium hardness or below,with the high crushing efficiency and high cost of wear parts.
(max 10%).
Sand making machine D&G Machinery Multi-functional Combination-Shaping Integrated Equipment
Sand Manufactuing Equipment Vibrating Screen China supplier D&G Machinery large capacity

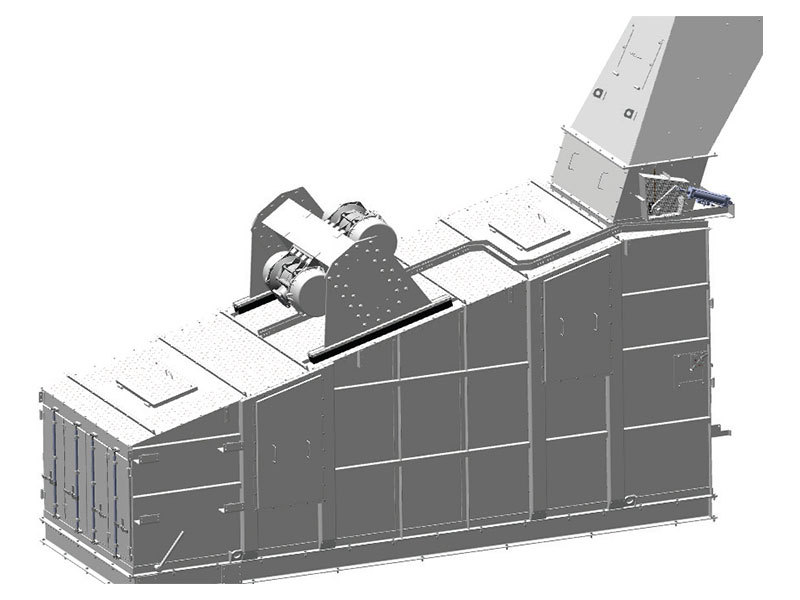

2.Full Series Composite Eco-friendly Vibrating Screen

It is high precision sieving stable performance, with multistage screening, large capacity and high screening efficiency and also can be screened according to customer needs, D&G MACHINERY provides scientific production solution to help companies achieve profits.

 Multistage screening
 Can be screened according to customer needs

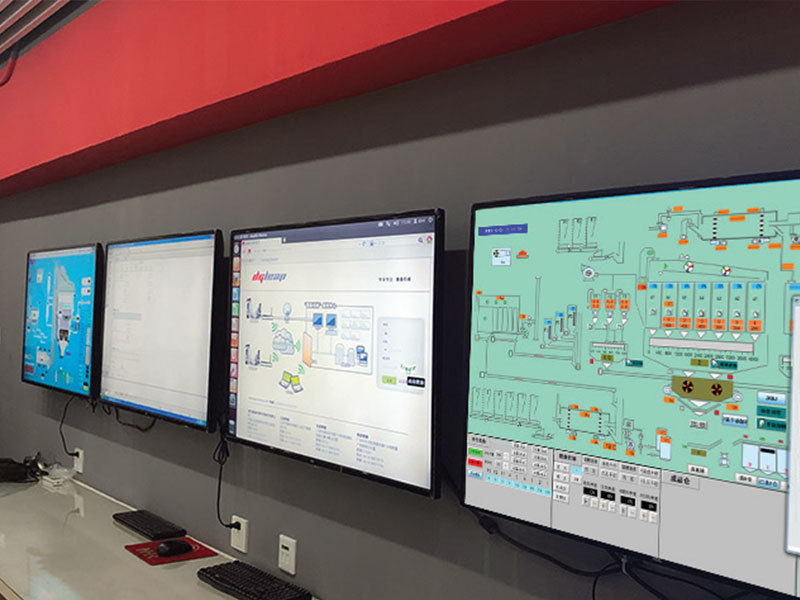

3.Intelligent Control System

Based on our DG Leap control system, it can save human cost and be efficient and easy to operate. It adopts imported original components and equipped with 4G/5G Cloud control.
Sand manufacturing machine DG Leap control system
D&G Machinery sand making machine China Deep Cavity Type Rotor

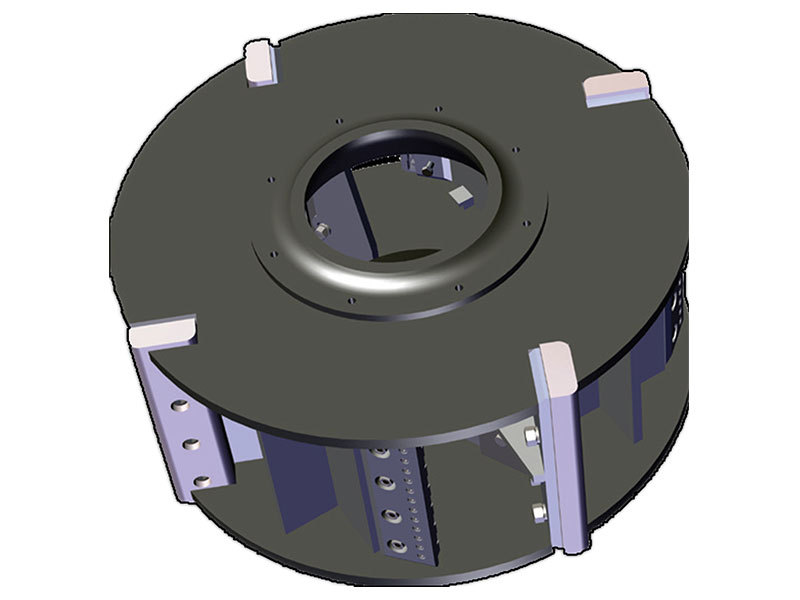

4.Deep Cavity Type Rotor

D&G self-developed know-how “secondary Intelligent bitumen measurement system” ensure the pre-set recipe can be implement with minimum deviation value. In the meantime, the waste of bitumen and other materials are eliminated.

 Four channels impacted rotor structure can increase crushing efficiency by 20-30%
 Adopts deep cavity type rotor, in this way, the material throughput can be increased by 30%.
 The curved channel design can reduce the flow resistance of materials, greatly improve the passage of materials and increase the production capacity of the machine.

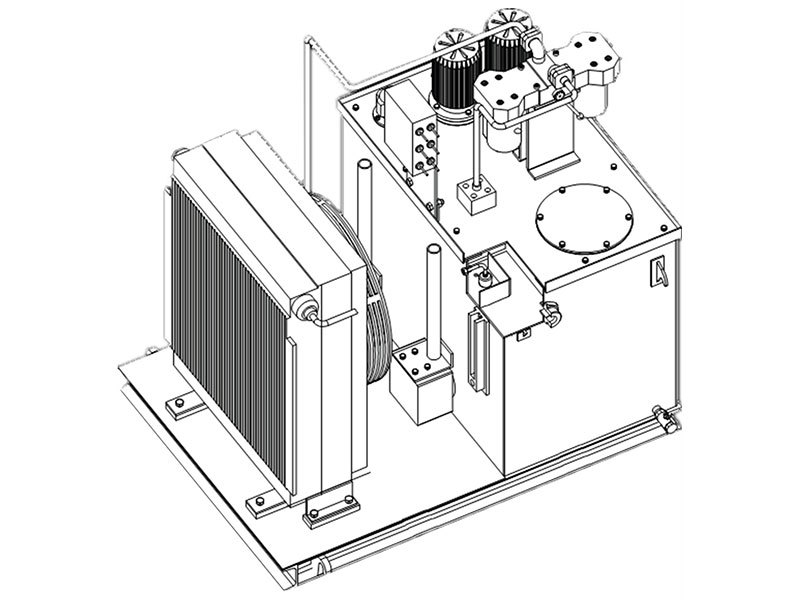

5.Vertical Shaft Impact Thin Oil Lubrication System

 Double oil pump supply
 Automatic shutdown in case of no oil flow or high oil temperature
 The cooling system and heating device work automatically
Sand manufacturing equipment D&G Machinerhy Oil Lubrication System
Product Parameters

Model
MS100
MS200
MS300
MS450
Feed Particle Size(mm)
30mm
35mm
40mm
50mm
Production(0-4.75mm)
30-50t/h
50-100t/h
100-150t/h
150-260t/h
Raw material throughput(≤40mm)
50-100t/h
100-200t/h
200-300t/h
200-300t/h
Powder content(adjustable)
3-18%
3-18%
3-18%
3-18%
Total power

/
≈750kW
≈950kW
Power Supply
AC380V/50Hz
AC380V/50Hz
AC380V/50Hz
AC380V/50Hz
Fineness modulus of finished material
1.6-2.2 Sand for ready-mixed mortar can be adjustable
2.3-3.2 Sand for commercial concrete can be adjustable
covers the total area
L20m x W30m (Subject to the actual situation on site)
