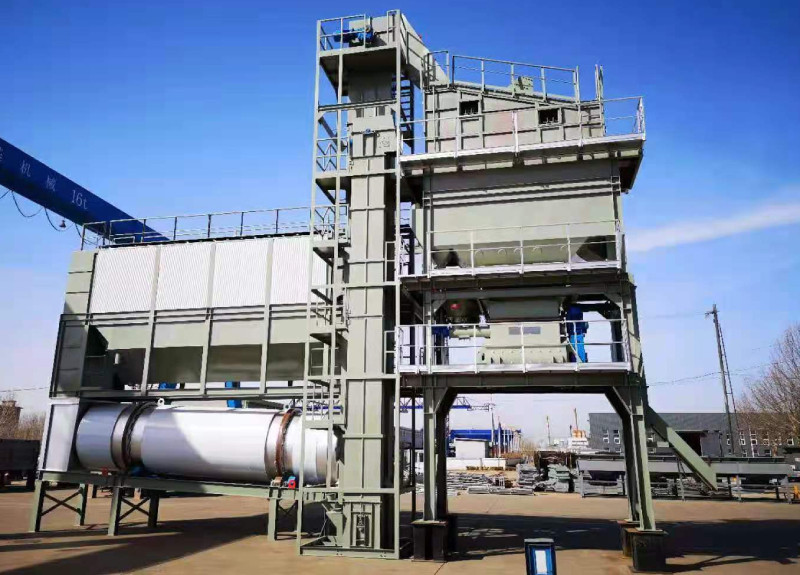

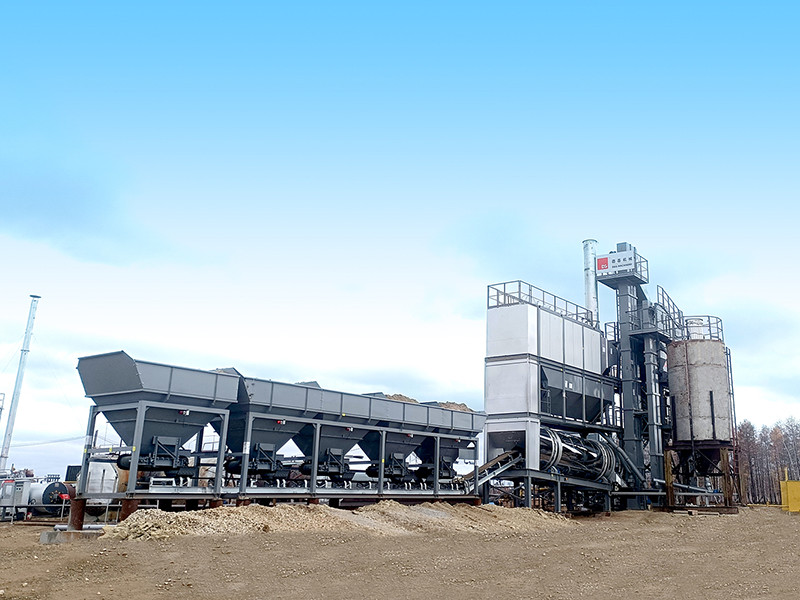

DG-PM Asphalt Mixing Plant

^{DG-PM asphalt mixing plant has complete product lineup including stationary, mobile asphalt batch mix plant and continuous drum mix plant. Thanks to the compact design it can be proper for some tight space with fully functions. Accurate control system, fast responding active and stable quality can satisfy almost all customer's need in more economical way. It designed and manufactured in accordance with Europe quality standard with CE&EAC certification. The plants adopted the top-class components to ensure the running stability and long service life.}

^{Contact us to get the product catelogue！}

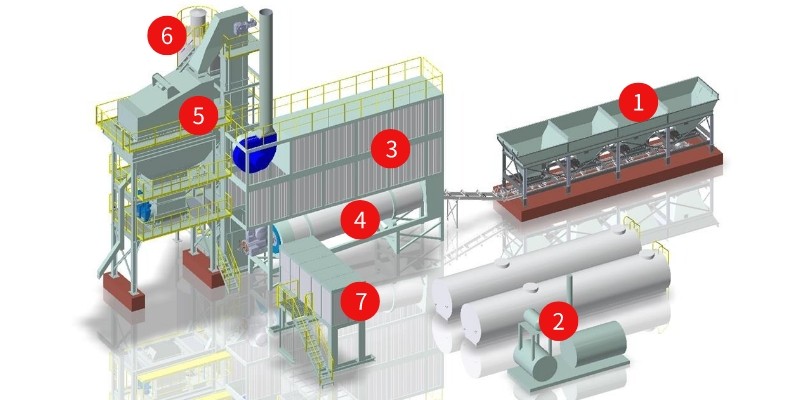

^{1. Cold feeder system}

^{2. Bitumen storage & heating system}

^{3. Dust collecting system}

^{4. Drying system}

^{5. Mixing tower system}

^{6. Filler system}

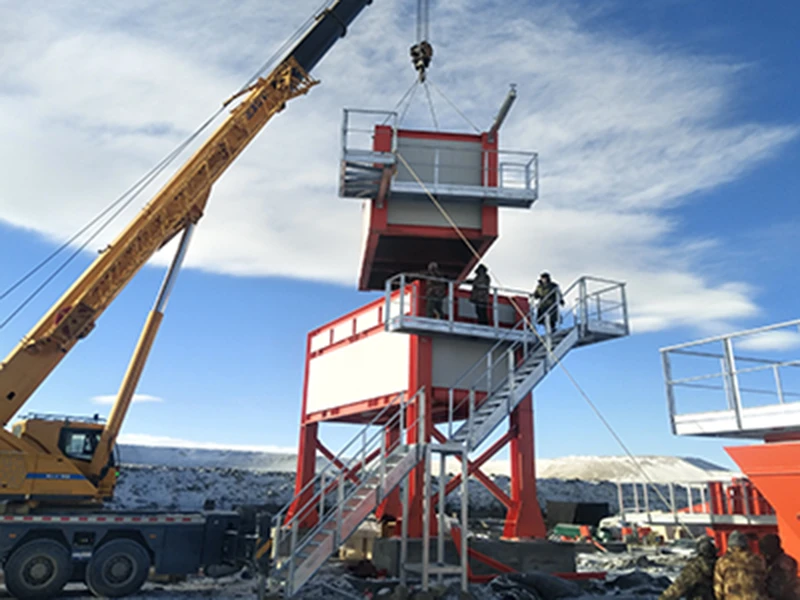

^{7. Control Room}

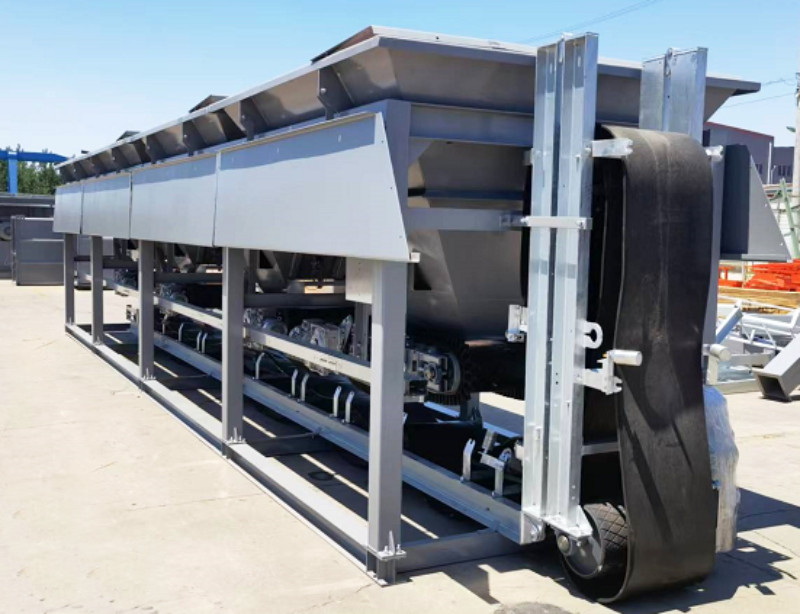

^{1) Foldable coaming to be loaded into 40‘HC. Quick removable structure of the belt conveyor. Easy maintenance. D&G owned Patent.}

^{2) Extract endless belt with skirt to prevent aggregate from spilling.}

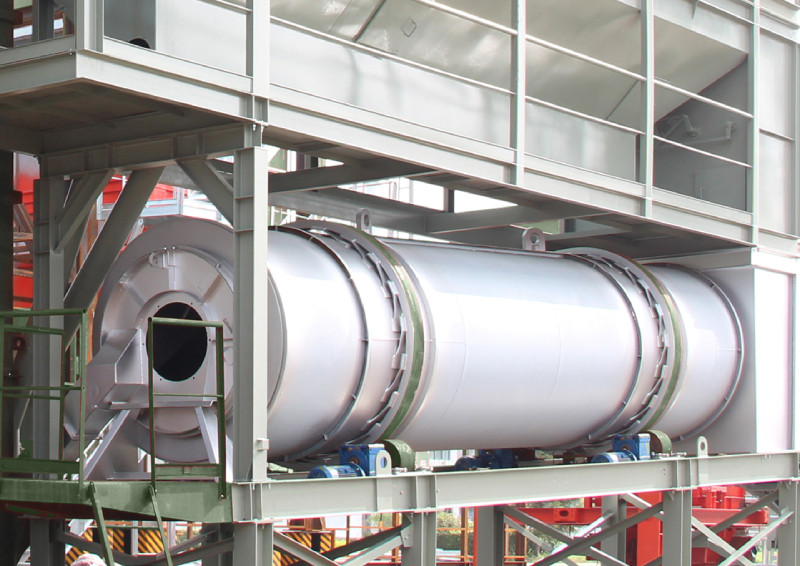

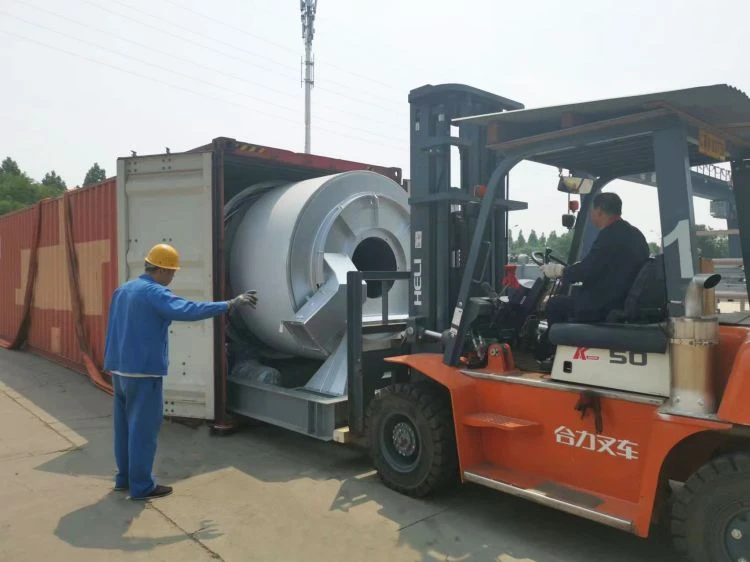

^{1) The drum with chassis (base plate) can be loaded into a 40'HC.}

^{2) High transmission efficiency with 4 units direct-connection powertrain system.}

^{3)Drying drum with thermal insulation to avoid energy loss.}

^{1) Foldable handrails & platforms and stairs are integrated with mixing tower.}

^{2) Elevator are fixed with mixing tower by positioning bolt. Easy to be relocated.}

^{3)Each module can be packed in a 40'HC standard container and trailer. Quick installation and delivery.}

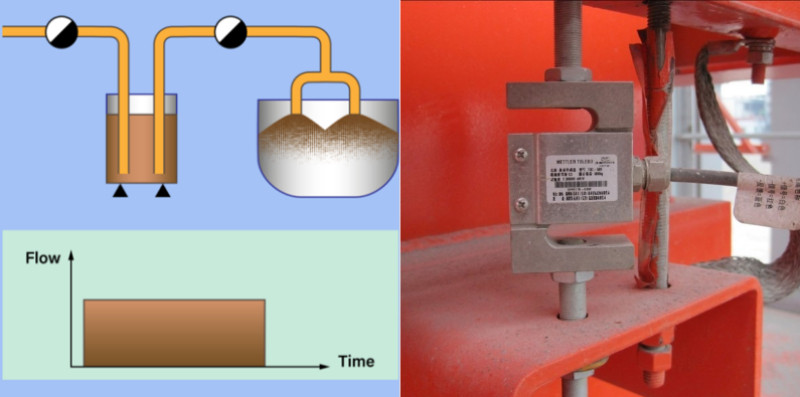

^{1) Weighing system adopt 3-points weighing sensor (load cell), signal is directly transmitted to control computer; weighing system has auto compensation function.}

^{2) Secondary intelligent bitumen measurement.}

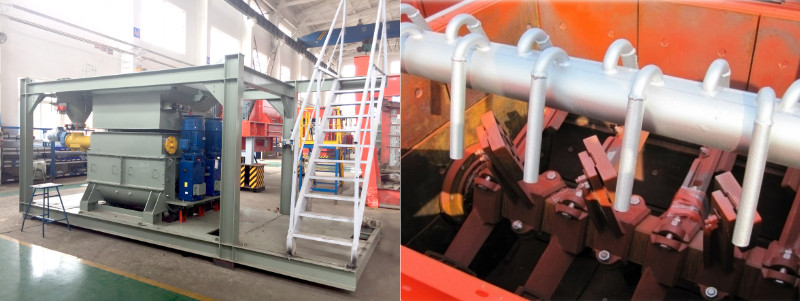

^{1) Mixing arms, paddles and liners are made of wear resistant material.}

^{2) Synchronized twin shafts driven by Rossi gearbox.}

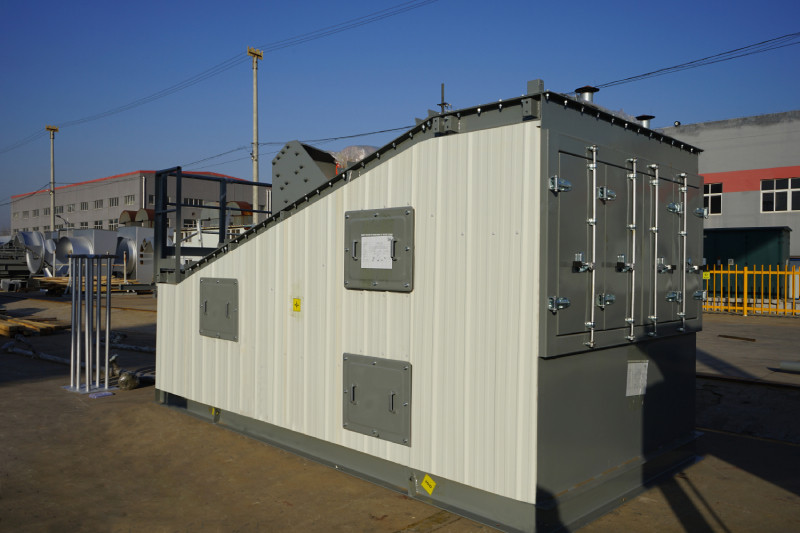

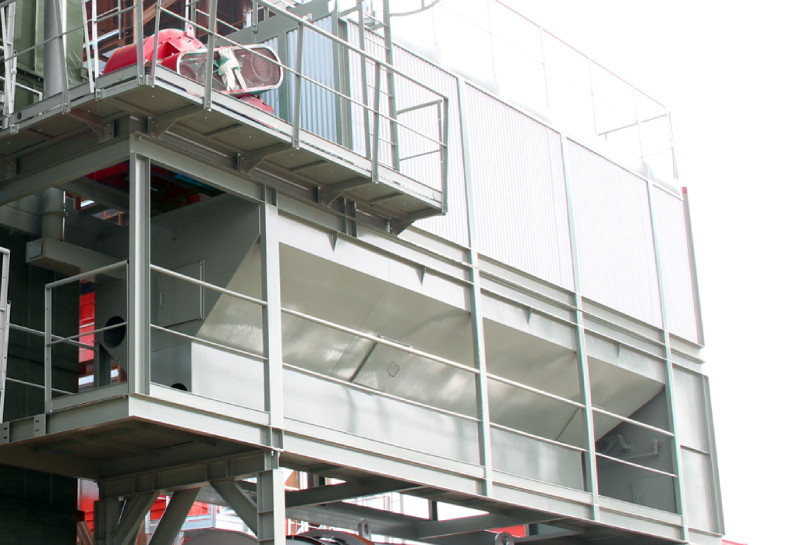

^{1) Dust collector is placed upon the dryer drum to save space.}

^{2 NOMEX filter bags.}

^{3) Two stages dust collecting system: primary gravity+ bag filter.}

^{4) All handrails can be folded up.}

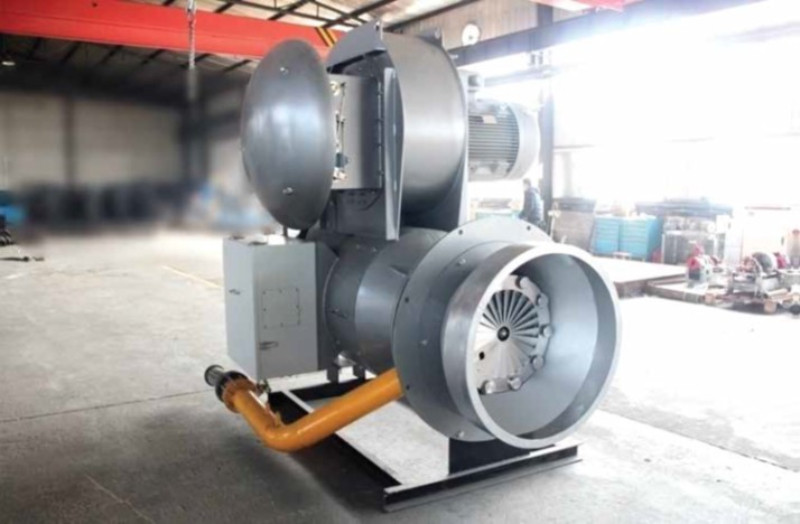

^{1) ABS burner imported from Italy.}

^{2) Automatic, low noise, less emission, low energy consumption and cost saving.}

^{3) Various fuel available: diesel, coal, heavy oil or natural gas.}

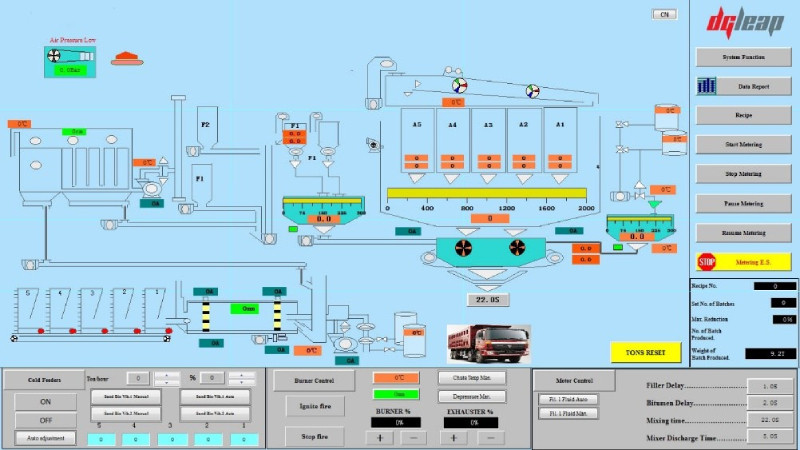

^{1) "DG LEAP" Automatic and manual control can be switched.}

^{2) System configured with Siemens PLC.}

^{1) Double vibrating motors.}

^{2) Special designed wear-proof clapboard.}
