D&G Standard Series DG3000T250D 240t/h batch hot mixture plant

D&G Standard Series DG3000T250D 240t/h batch hot mixture plant

D&G Standard Series DG3000T250D 240t/h batch hot mixture plant
D&G Standard Series DG3000T250D 240t/h batch hot mixture plantD&G Standard Series DG3000T250D 240t/h batch hot mixture plantD&G Standard Series DG3000T250D 240t/h batch hot mixture plant
CategoriesStone Crushing Plant
BrandD&G Asphalt Plant Manufacturer
ModelDG3000T250D
Rated capacity240T/H
Installed powerAppr. 555kW (Standard Configuration)
mixture storageunder mixer
CertificationCE ISO
Applicationconstruction industry
BurnerDiesel / Heavy Oil / Nature Gas / LPG / Coal
ColorCustomizable
Warranty1 Year
FOB portTIANJIN
Terms of PaymentL/C, T/T
Update TimeNov 14,2024
Detail Information
TECHNICAL DATA
MODEL
DG3000T250D
Rated Production Capacity
240 t/h
Cold Feeder Bin
Number × Volume
5 × 18 m³
Dryer Drum
Diameter Ø
ø 2.5 m
Length
9 m
Fuel Type
Diesel / Heavy Oil / Nature Gas / LPG / Coal
Drying Capacity
– Moisture Content 3%
300 t/h
– Moisture Content 5%
240 t/h
Bag House
Dust Filtering Method
(1st Stage) Pre-separator + (2nd Stage) Bag Filtering House
Main Tower
Screening
5 / 6
Screening Area
38.4 m²
Hot Bin Quantity
5+1 / 6+1
Hot Bin Overall Volume
45 m³
Aggregates Weighing
3000 kg
Filler Weighing
400 kg
Bitumen Weighing
400 kg
Mixing Power
2 × 45 kW
Mixing Capacity
3300 kg
Filler Scaling & Feeding
Vari-Frequency Screw, Compelled and Well-Distributed Feeding Design.
Bitumen Scaling & Feeding
Dynamic 2-Stage Measurement, High Pressure Uniformly Spray.
Mixing
2 Horizontal Mixing Shafts, Dual-Motor Driven with Synchronous Reducer.
Hot Mix Storage Bin Type
Under Mixer
Hot Mix Storage Bin Capacity
( 20 + 20 ) 40 m³
Control System
• DGLeap Control System 2.0ontrol System 2.0
• Large Screen Industrial Computer
• PLC Touch Screen HMI
• Laser Printer
• Air-Conditioned Control Cabin
Environment Index
• Dust Density⩽20mg/Nm³
• Ringelmann Blackness Class 1
• Noise in Control Cabin ⩽70dB
The above specifications are for reference only. D&G Machinery reserves the right to make changes in engineering, design and improvement at any time without prior notice or obligation.
PRODUCT DISPLAY

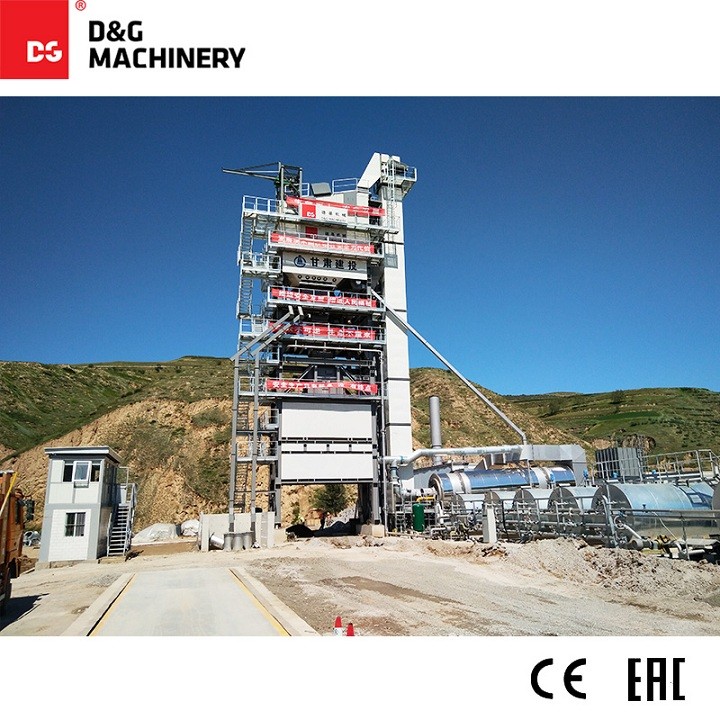

asphalt mixing plant china
Diesel Burner
asphalt mixing plant types
