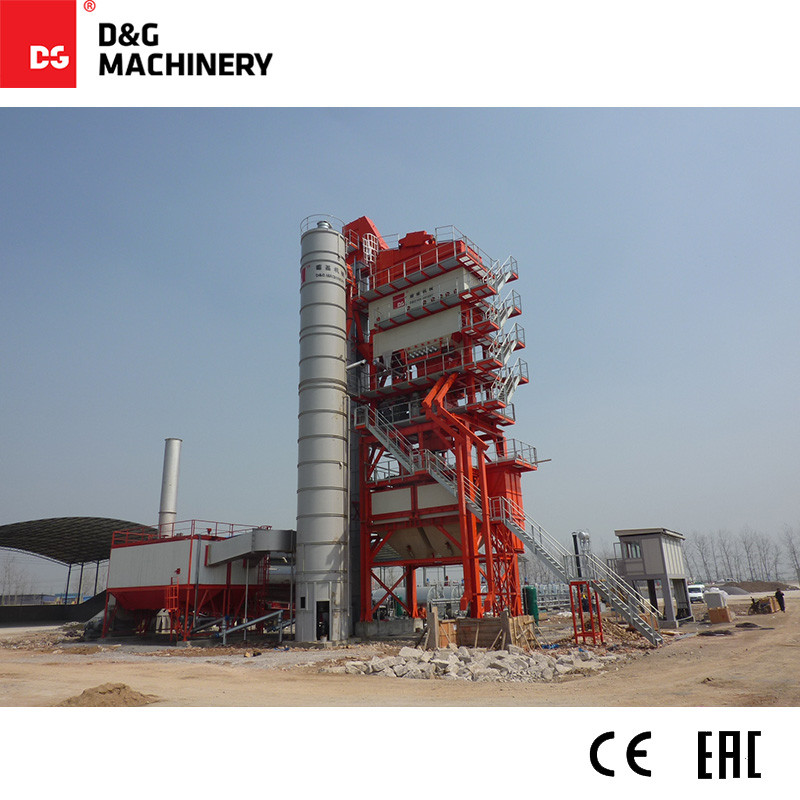

D&G Standard Series DG4000T280D 320t/h asphalt batch mixing plant
D&G Standard Series DG4000T280D 320t/h asphalt batch mixing plant
| Categories | Stone Crushing Plant |
|---|---|
| Brand | D&G Asphalt Plant Manufacturer |
| Model | DG4000T280D |
| Rated capacity | 320T/H |
| Storage silo | Under mixer |
| Specification | DG4000T280D |
| Condition | New |
| Warranty | 1 Year |
| Shipping | Sea |
| Machinery Test Report | Provide |
| Brand Name | D&G |
| FOB port | TIANJIN |
| Terms of Payment | L/C, T/T |
| Update Time | Nov 14,2024 |
Detail Information
TECHNICAL DATA
MODEL |
DG4000T280 |
||
Rated Production Capacity | 320 t/h | ||
Cold Feeder Bin | Number × Volume | 6 × 18 m³ | |
Dryer Drum | Diameter Ø | ø 2.8 m | |
Length | 12 m | ||
Fuel Type | Diesel / Heavy Oil / Nature Gas / LPG / Coal | ||
Drying Capacity | |||
– Moisture Content 3% | 390 t/h | ||
– Moisture Content 5% | 320 t/h | ||
Bag House | Dust Filtering Method | (1st Stage) Pre-separator + (2nd Stage) Bag Filtering House | |
Main Power | Screening | 6 | |
Screening Area | 58.7 m² | ||
Hot Bin Quantity | 5 + 1 | ||
Hot Bin Overall Volume | 75 m³ | ||
Aggregates Weighing | 4000 kg | ||
Filler Weighing | 500 kg | ||
Bitumen Weighing | 500 kg | ||
Mixing Power | 2 × 55 kW | ||
Mixing Capacity | 4200 kg | ||
Filler Scaling & Feeding | Vari-Frequency Screw, Compelled and Well-Distributed Feeding Design. | ||
Bitumen Scaling & Feeding | Dynamic 2-Stage Measurement, High Pressure Uniformly Spray. | ||
Mixing |
2 Horizontal Mixing Shafts, Dual-Motor Driven with Synchronous Reducer. |
||
Hot Mix Storage Bin Type | By-Side | ||
Hot Mix Storage Bin Capocity | 55 +65 m³ | ||
Control System |
• DGLeap Control System 2.0ontrol System 2.0 • Large Screen Industrial Computer • PLC Touch Screen HMI • Laser Printer • Air-Conditioned Control Cabin |
||
Environment Index |
• Dust Density⩽20mg/Nm³ • Ringelmann Blackness Class 1 • Noise in Control Cabin ⩽70dB |
||
The above specifications are for reference only. D&G Machinery reserves the right to make changes in engineering, design and improvement at any time without prior notice or obligation. | |||
