D&G Standard Series DG3000T250 240t/h asphalt mixing plant

D&G Standard Series DG3000T250 240t/h asphalt mixing plant

D&G Standard Series DG3000T250 240t/h asphalt mixing plant
D&G Standard Series DG3000T250 240t/h asphalt mixing plantD&G Standard Series DG3000T250 240t/h asphalt mixing plantD&G Standard Series DG3000T250 240t/h asphalt mixing plant
CategoriesStone Crushing Plant
BrandD&G Asphalt Plant Manufacturer
ModelDG3000T250
Rated capacity240T/H
installed powerAppr.603KW(standard configuration)
ConditionNew
ColorAccodrding to Customer' request
ShippingSea
Warranty1 Year
Applicable IndustriusRoad Construction
Local ServiceProvide
Place of OriginHebei,China
Capacity60-400t/h
FOB portTIANJIN
Terms of PaymentL/C, T/T
Update TimeNov 14,2024
Detail Information
TECHNICAL DATA
MODEL
DG3000T250
Rated Production Capacity
240 t/h
Cold Feeder Bin
Number × Volume
5 × 18 m³
Dryer Drum
Diameter Ø
ø 2.5 m
Length
9 m
Fuel Type
Diesel / Heavy Oil / Nature Gas / LPG / Coal
Drying Capacity
– Moisture Content 3%
300 t/h
– Moisture Content 5%
240 t/h
Bag House
Dust Filtering Method
(1st Stage) Pre-separator + (2nd Stage) Bag Filtering House
Main Tower
Screening
5 / 6
Screening Area
38.4 m²
Hot Bin Quantity
5+1 / 6+1
Hot Bin Overall Volume
45 m³
Aggregates Weighing
3000 kg
Filler Weighing
400 kg
Bitumen Weighing
400 kg
Mixing Power
2 × 45 kW
Mixing Capacity
3300 kg
Filler Scaling & Feeding
Vari-Frequency Screw, Compelled and Well-Distributed Feeding Design.
Bitumen Scaling & Feeding
Dynamic 2-Stage Measurement, High Pressure Uniformly Spray.
Mixing
2 Horizontal Mixing Shafts, Dual-Motor Driven with Synchronous Reducer.
Hot Mix Storage Bin Type
By-Side
Hot Mix Storage Bin Capacity
35 + 45 m³
Control System
• DGLeap Control System 2.0ontrol System 2.0
• Large Screen Industrial Computer
• PLC Touch Screen HMI
• Laser Printer
• Air-Conditioned Control Cabin
Environment Index
• Dust Density⩽20mg/Nm³
• Ringelmann Blackness Class 1
• Noise in Control Cabin ⩽70dB
The above specifications are for reference only. D&G Machinery reserves the right to make changes in engineering, design and improvement at any time without prior notice or obligation.

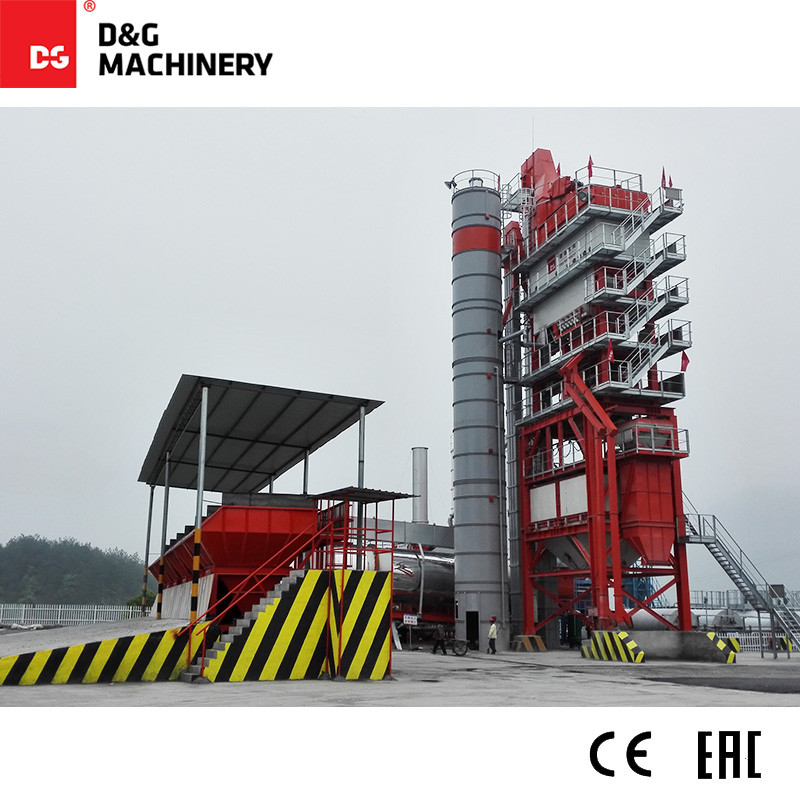

PRODUCT DISPLAY
TTM mixing plant
marini mixing plant
