DGC Compact Series DG2500T220AC 200t/h asphalt batch mixing plant

DGC Compact Series DG2500T220AC 200t/h asphalt batch mixing plant

DGC Compact Series DG2500T220AC 200t/h asphalt batch mixing plant
DGC Compact Series DG2500T220AC 200t/h asphalt batch mixing plantDGC Compact Series DG2500T220AC 200t/h asphalt batch mixing plantDGC Compact Series DG2500T220AC 200t/h asphalt batch mixing plant
CategoriesStone Crushing Plant
BrandD&G Asphalt Plant Manufacturer
ModelDG2500T220AC
plant typeshipper own container(soc)
Rated capacity200T/H
Installed powerAppr. 542kW (Standard Configuration)
CertificationISO9001
After-sales Serviceon-site / online support
Machinery Test ReportProvide
Warranty of core component1 Year
ModelDG2500T220AC
FOB portTIANJIN
Terms of PaymentL/C, D/A, T/T
Update TimeNov 14,2024
Detail Information
TECHNICAL DATA
MODEL
DG2500T220AC
Rated Production Capacity
200 t/h

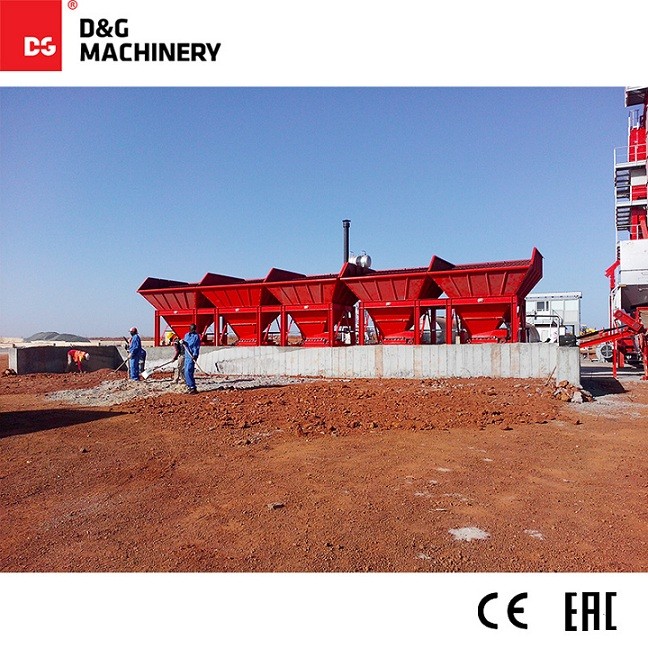

Cold Feeder Bin
Number × Volume
2 × 10 m³
Dryer Drum
Diameter Ø
ø 2.2 m
Length
9 m
Fuel Type
Diesel / Heavy Oil / Nature Gas
Drying Capacity
– Moisture Content 3%
220 t/h
– Moisture Content 5%
200 t/h
Bag House
Dust Filtering Method
(1st Stage) Pre-separator + (2nd Stage) Bag Filtering House
Main Tower
Screening
5
Screening Area
28.1 m²
Hot Bin Quantity
5 + 1
Hot Bin Overall Volume
40 m³
Aggregates Weighing
2500 kg
Filler Weighing
250 kg
Bitumen Weighing
250 kg
Mixing Power
× 37 kW
Mixing Capacity
2500 kg
Filler Scaling & Feeding
Vari-Frequency Screw, Compelled and Well-Distributed Feeding Design.
Bitumen Scaling & Feeding
Dynamic 2-Stage Measurement, High Pressure Uniformly Spray.
Mixing
2 Horizontal Mixing Shafts, Dual-Motor Driven with Synchronous Reducer.
Control System
• DGLeap Control System 2.0ontrol System 2.0
• Large Screen Industrial Computer • PLC Touch Screen HMI
• Laser Printer • Air-Conditioned Control Cabin
Environment Index
• Dust Density⩽20mg/Nm³
• Ringelmann Blackness Class 1
• Noise in Control Cabin ⩽70dB
The above specifications are for reference only. D&G Machinery reserves the right to make changes in engineering, design and improvement at any time without prior notice or obligation.

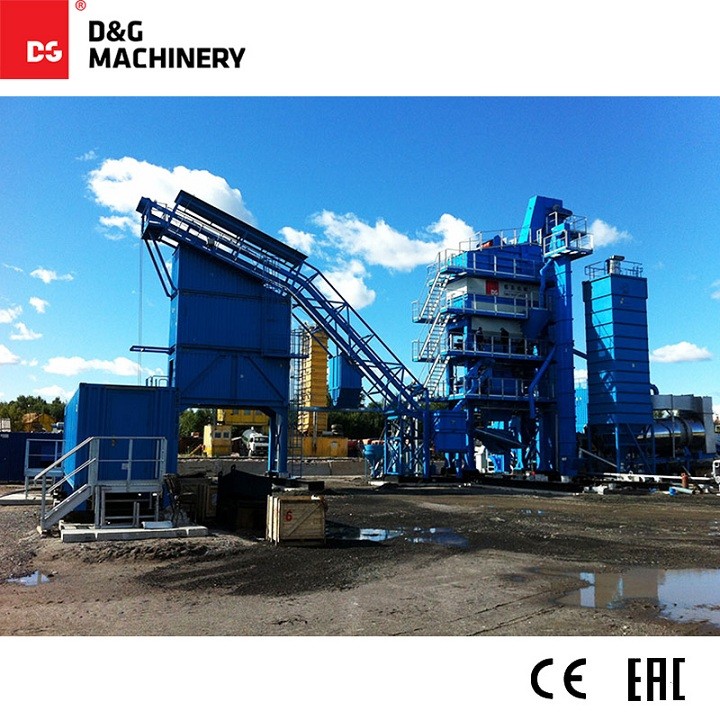

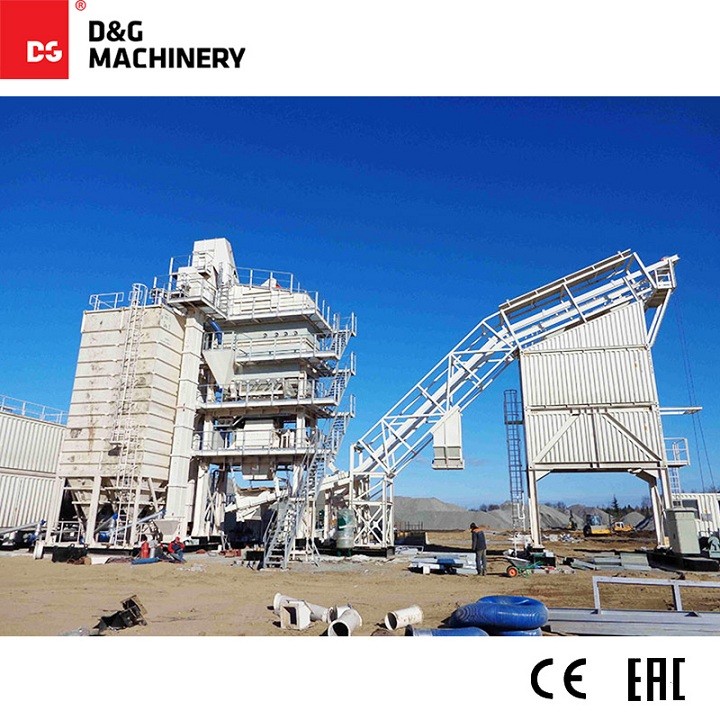

PRODUCT DISPLAY
hot mixed plant marini
