D&G Standard Series DG1300T160 100t/h batch asphalt mixing plant

D&G Standard Series DG1300T160 100t/h batch asphalt mixing plant

D&G Standard  Series DG1300T160 100t/h batch asphalt mixing plant
D&G Standard  Series DG1300T160 100t/h batch asphalt mixing plantD&G Standard  Series DG1300T160 100t/h batch asphalt mixing plantD&G Standard  Series DG1300T160 100t/h batch asphalt mixing plant
CategoriesStone Crushing Plant
BrandD&G Asphalt Plant Manufacturer
ModelDG1300T160
Rated capacity100T/h
Installed powerAppr. 306 kW (Standard Configuration)
Place of originChina
Colorcustomization
After-salessupport online
FOB portTIANJIN
Terms of PaymentL/C, T/T
Update TimeNov 14,2024
Detail Information
TECHNICAL DATA
MODEL
DG1300T160
Rated Production Capacity
123 t/h
Cold Feeder Bin
Number × Volume
4 × 10 m³
Dryer Drum
Diameter Ø
ø 1.9 m
Length
8.5 m
Fuel Type
Diesel / Heavy Oil / Nature Gas / LPG / Coal
Drying Capacity
– Moisture Content 3%
170 t/h
– Moisture Content 5%
120 t/h
Bag House
Dust Filtering Method
(1st Stage) Pre-separator + (2nd Stage) Bag Filtering House
Main Tower
Screening
4
Screening Area
10.1 m²
Hot Bin Quantity
4 + 1
Hot Bin Overall Volume
21 m³
Aggregates Weighing
1300 kg
Filler Weighing
130 kg
Bitumen Weighing
130 kg
Mixing Power
2 × 18.5 kW
Mixing Capacity
1300 kg
Filler Scaling & Feeding
Vari-Frequency Screw, Compelled and Well-Distributed Feeding Design.
Bitumen Scaling & Feeding
Dynamic 2-Stage Measurement, High Pressure Uniformly Spray.
Mixing
2 Horizontal Mixing Shafts, Dual-Motor Driven with Synchronous Reducer.
Hot Mix Storage Bin Type
By-side
Hot Mix Storage Bin Capacity
50 m³
Control System
• DGLeap Control System 2.0ontrol System 2.0
• Large Screen Industrial Computer
• PLC Touch Screen HMI
• Laser Printer
• Air-Conditioned Control Cabin
Environment Index
• Dust Density⩽20mg/Nm³
• Ringelmann Blackness Class 1
• Noise in Control Cabin ⩽70dB
The above specifications are for reference only. D&G Machinery reserves the right to make changes in engineering, design and improvement at any time without prior notice or obligation.
PRODUCT DISPLAY

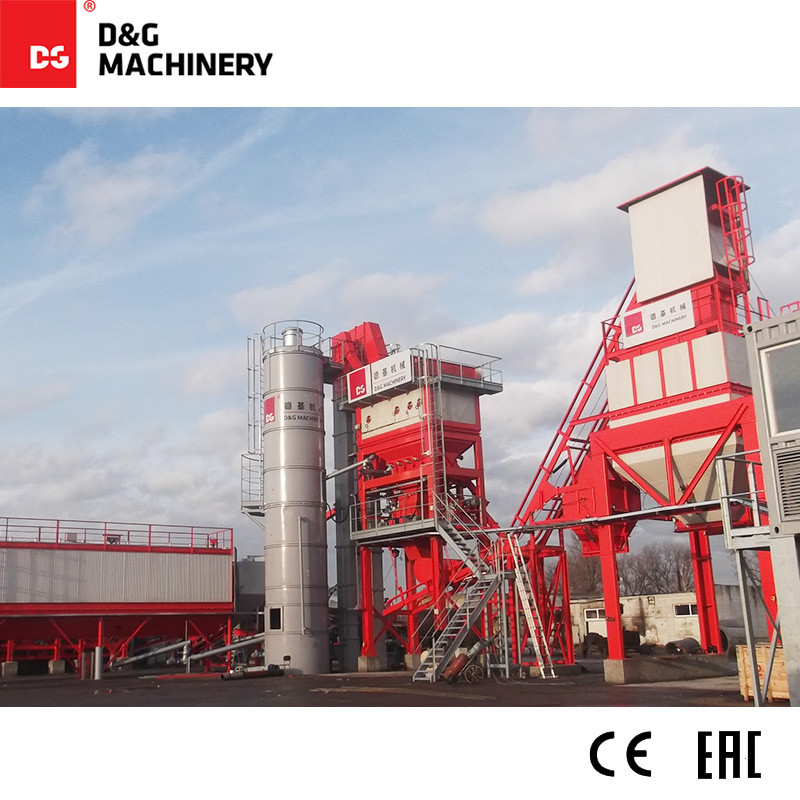

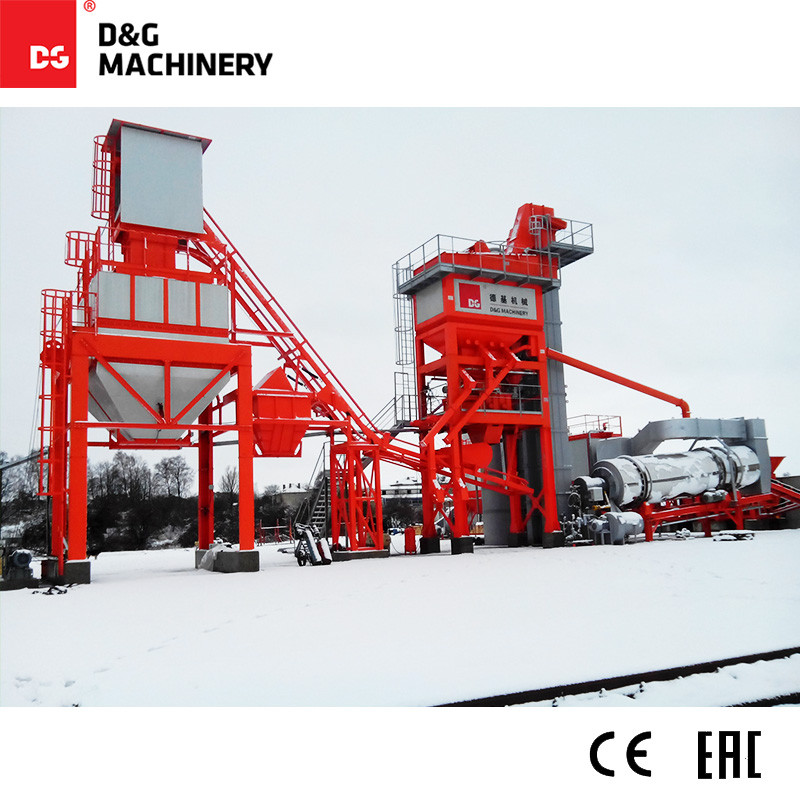

DG asphalt mixing plant
DG equipment burner uses diesel
